Rigging procedures

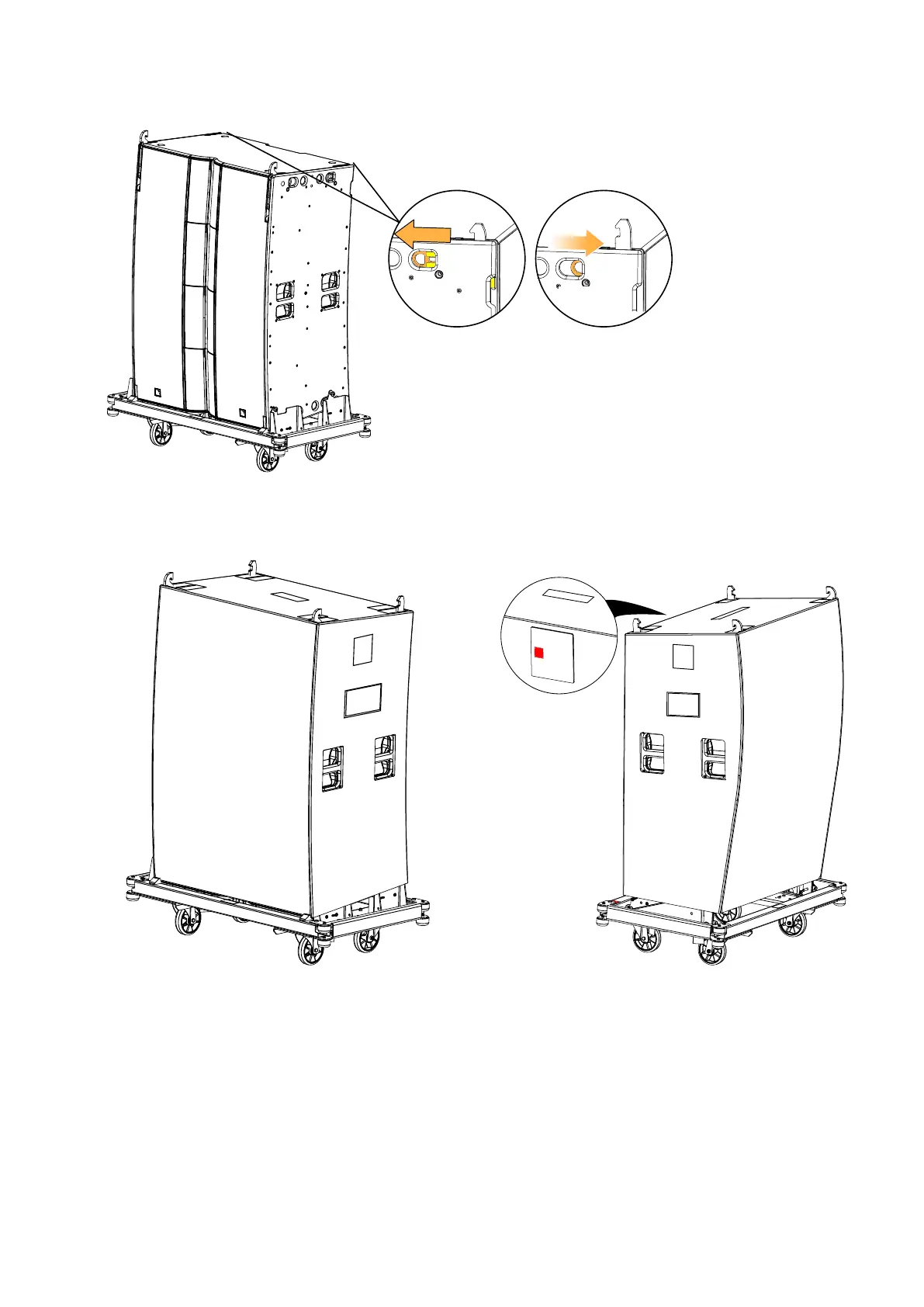

b) Pull on the latches while extending the rear rigging arms of the enclosure.
Release the latches to lock the rigging arms in their upward positions.
SHLAK!
2. Put L2-CHARIOTCOV on L2 or L2D-CHARIOTCOV on L2D.
Open the top flaps to let out the rigging arms.
L2-CHARIOTCOV L2D-CHARIOTCOV features a red label.
