Rigging procedures

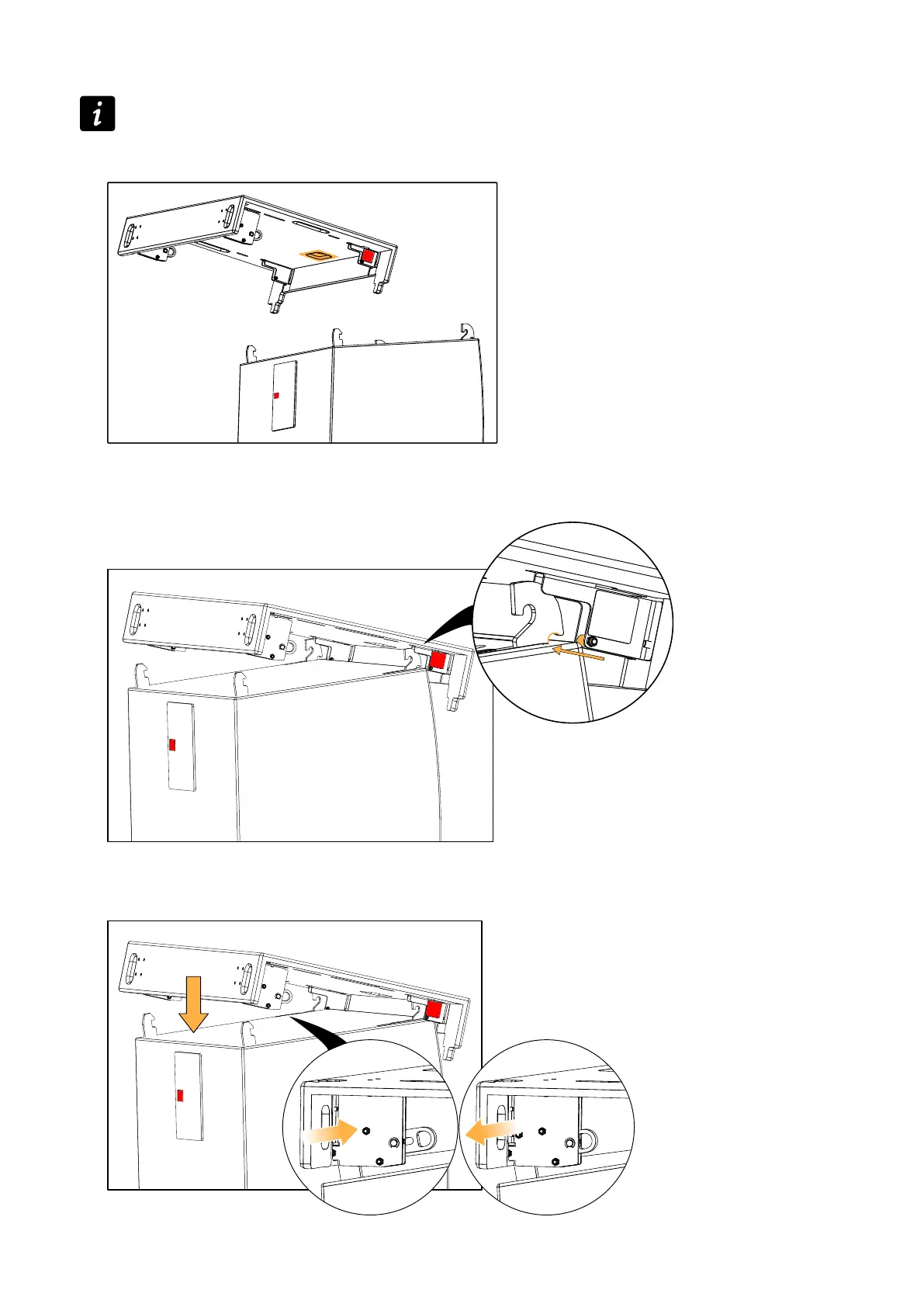

3. Position L2-CHARIOTLID on L2 or L2D-CHARIOTLID on L2D:
This step is better achieved by a single operator.
a) Hold the lid from underneath using the front handle, and stand at the rear of the enclosure.
L2D-CHARIOTLID features red labels.
b) Tilting the lid, position the axes inside the front rigging arms.
c) Gently drop the lid to connect the rear rigging arms.
The latches on the lid slide out slightly and come back into their positions.
