Corrective maintenance
D/R - Connector plate
Tools
• torque screwdriver
• T25 Torx bit
• flat plastic tool
Repair kit
G03646 - KR compression driver 3" L2(D)
G03650 - KR diaphragm 3'' L2(D)
×16
S100086
M5×16 Torx

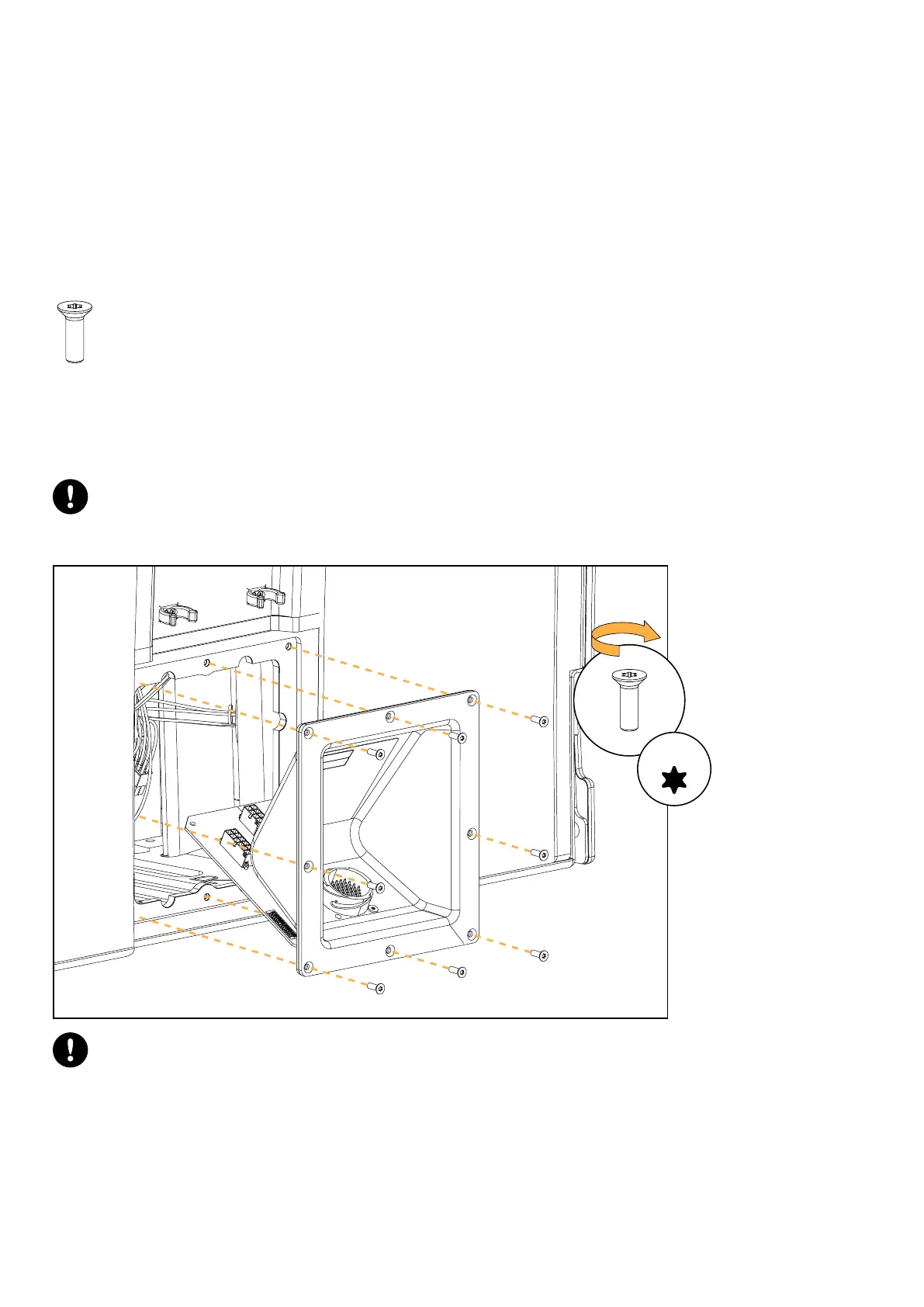

Exploded view
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.
Use a flat plastic tool as a lever to remove the connector plate.
x8
3 N.m
T25
Risk of disconnecting the HF driver
Unplug the connectors from the plate to avoid pulling at the internal cabling.
Before securing the connector plate, plug the connectors, then make sure the HF driver is properly connected.
L2 owner's manual (EN) version 5.0 173
