Corrective maintenance
D/R - Rear grill
Tools
• torque screwdriver
• T25 Torx bit
Repair kit
G03646 - KR compression driver 3" L2(D)
G03650 - KR diaphragm 3'' L2(D)
×16
S100086
M5×16 Torx

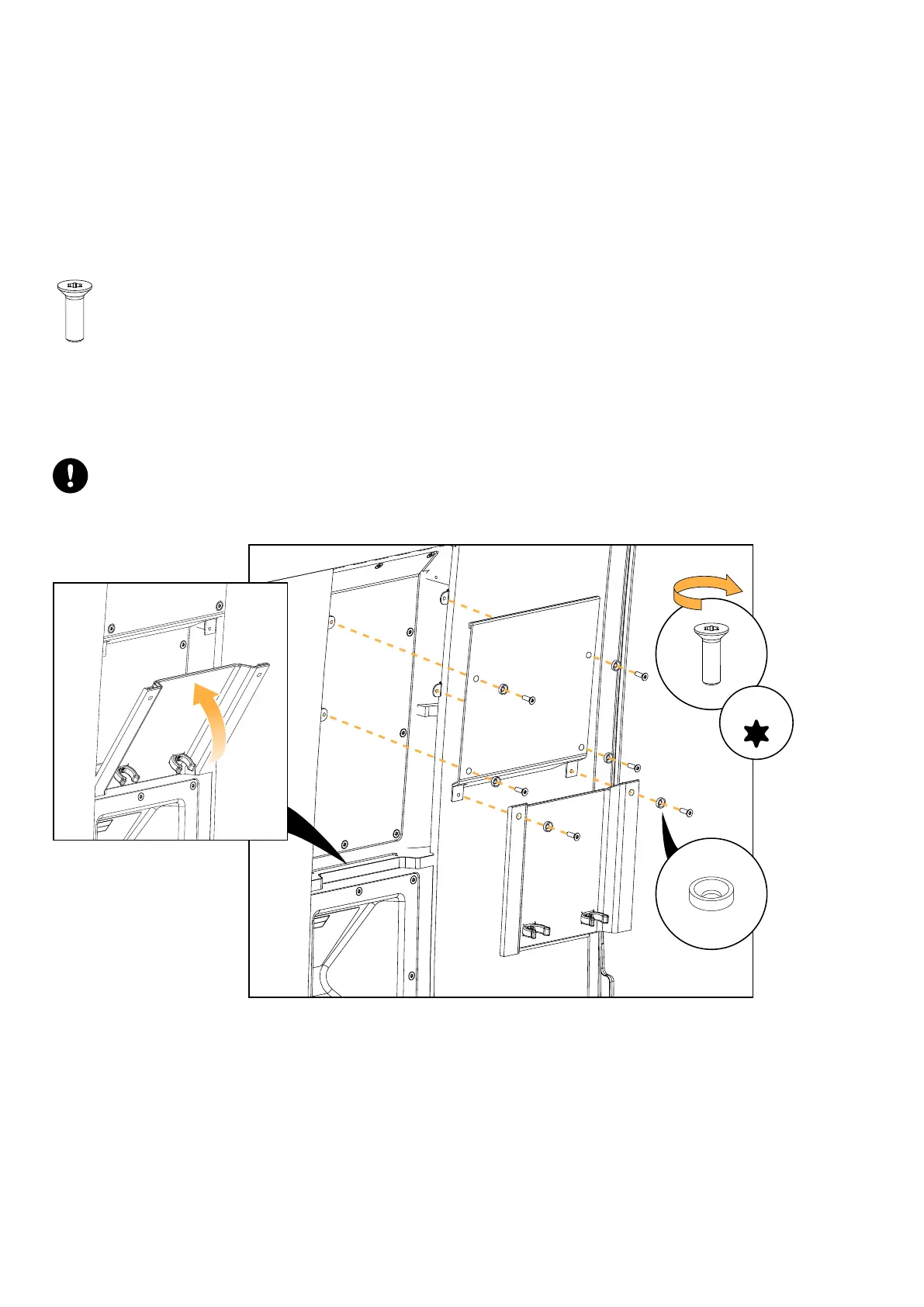

Exploded view
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.
Keep the washers for reassembly.
x6
3 N.m
T25
x6
174 L2 owner's manual (EN) version 5.0
