Corrective maintenance
D/R - Trapdoor
Tools
• torque screwdriver
• T25 Torx bit
• flat plastic tool
Repair kit
G03646 - KR compression driver 3" L2(D)
G03650 - KR diaphragm 3'' L2(D)
×16
S100086
M5×16 Torx
Prerequisite
Rear grill removed. See D/R - Rear grill (p.174).

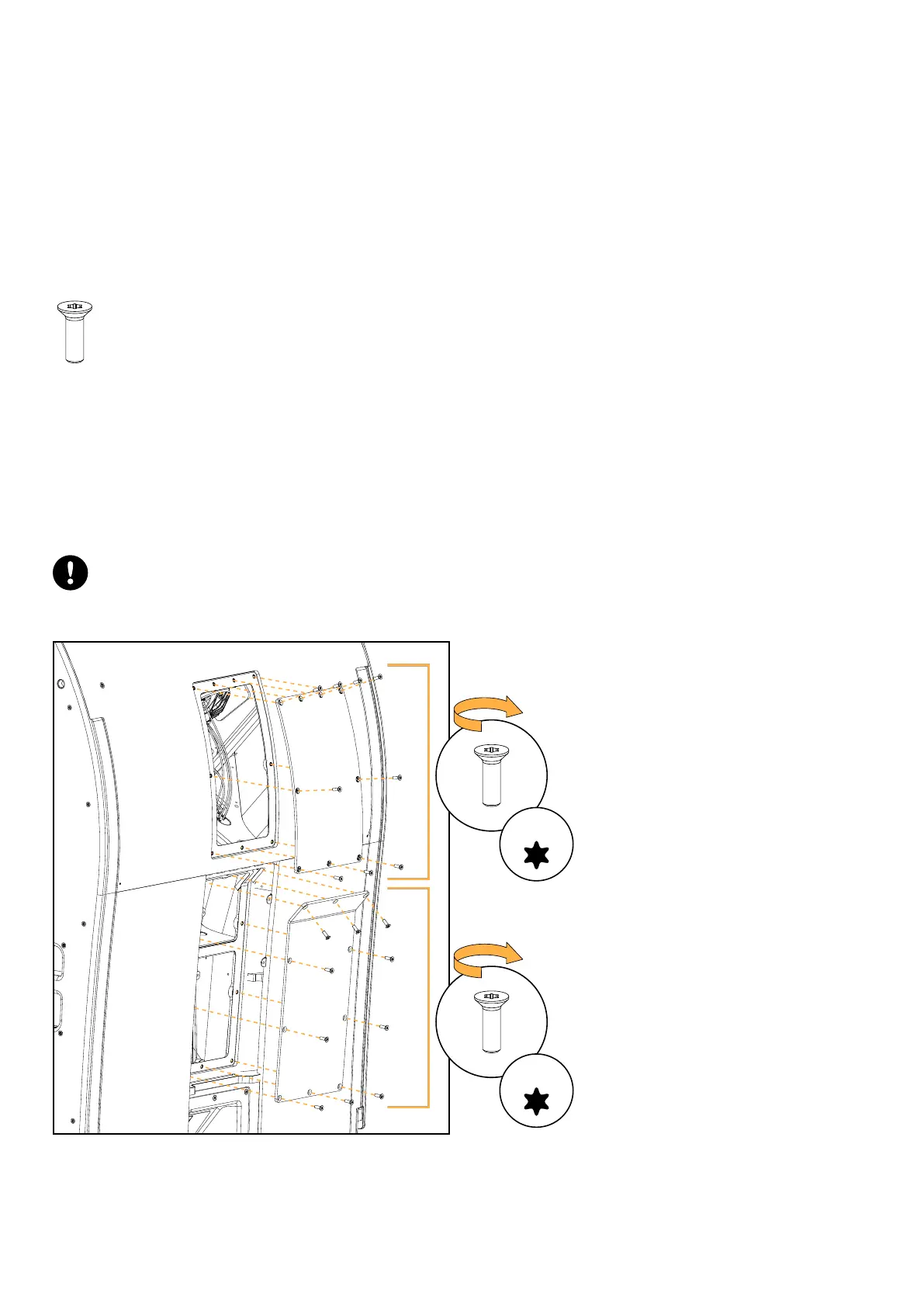

Exploded view
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.
Use a flat plastic tool as a lever to remove the trapdoors.
x9
3 N.m
T25
x10
3 N.m
T25
L2 owner's manual (EN) version 5.0 175
