Inspection and preventive maintenance

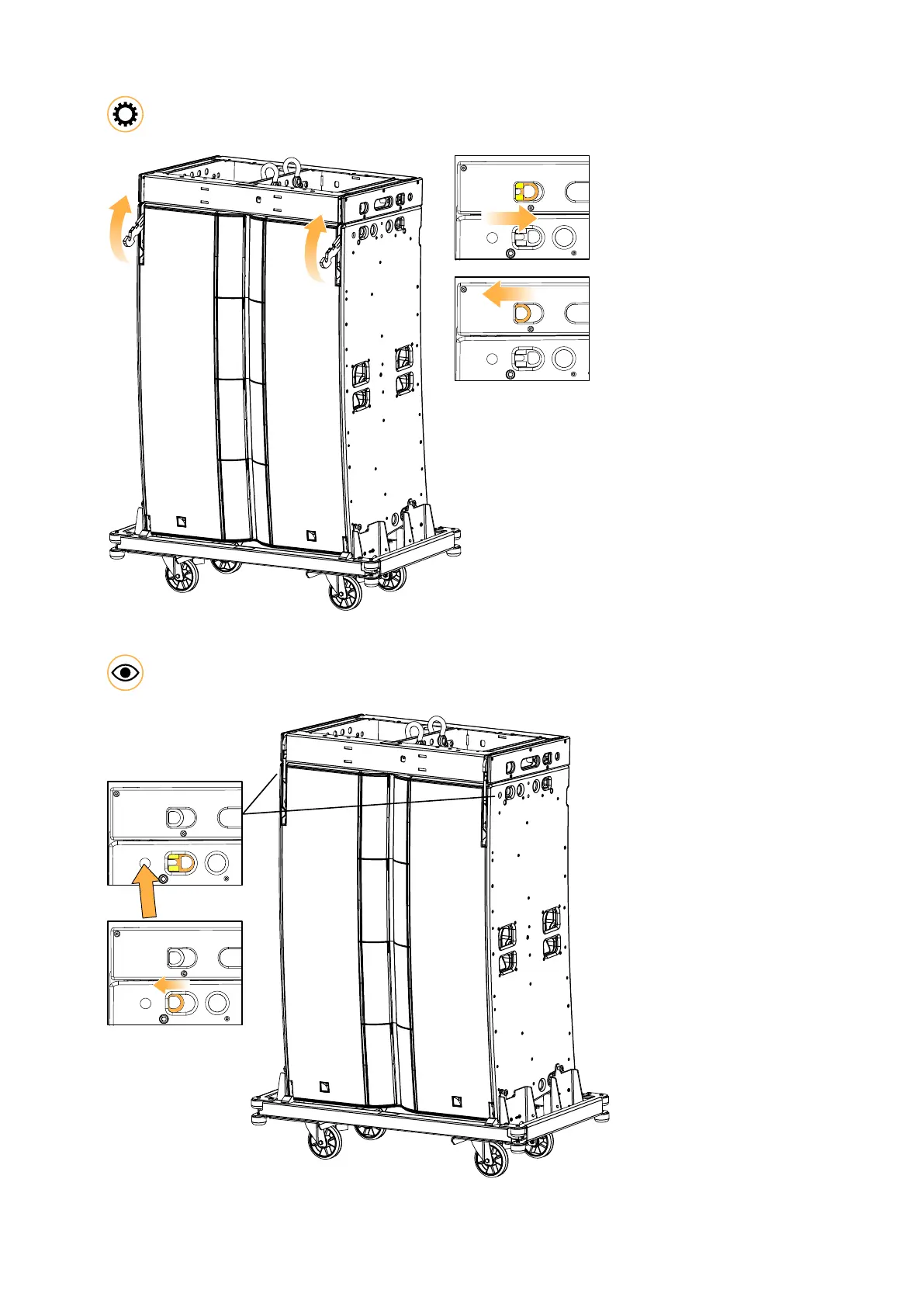

b) Pull on the front latches and rotate the rigging arms of L2.
The front rigging arms can be deployed with some resistance, and rotate correctly.
The latches of L2-BUMP slide out slightly and come back into their positions.
c) Press the front buttons on both sides of L2 to activate the automatic locking system.
The latches retract (no yellow label visible).
SHLAK!
72 L2 owner's manual (EN) version 5.0
