L-Acoustics L2 - Page 74

Inspection and preventive maintenance
2. Select the pickup point(s) on L2-BUMP and slightly raise the array.
L2-BUMP and L2 remain attached.

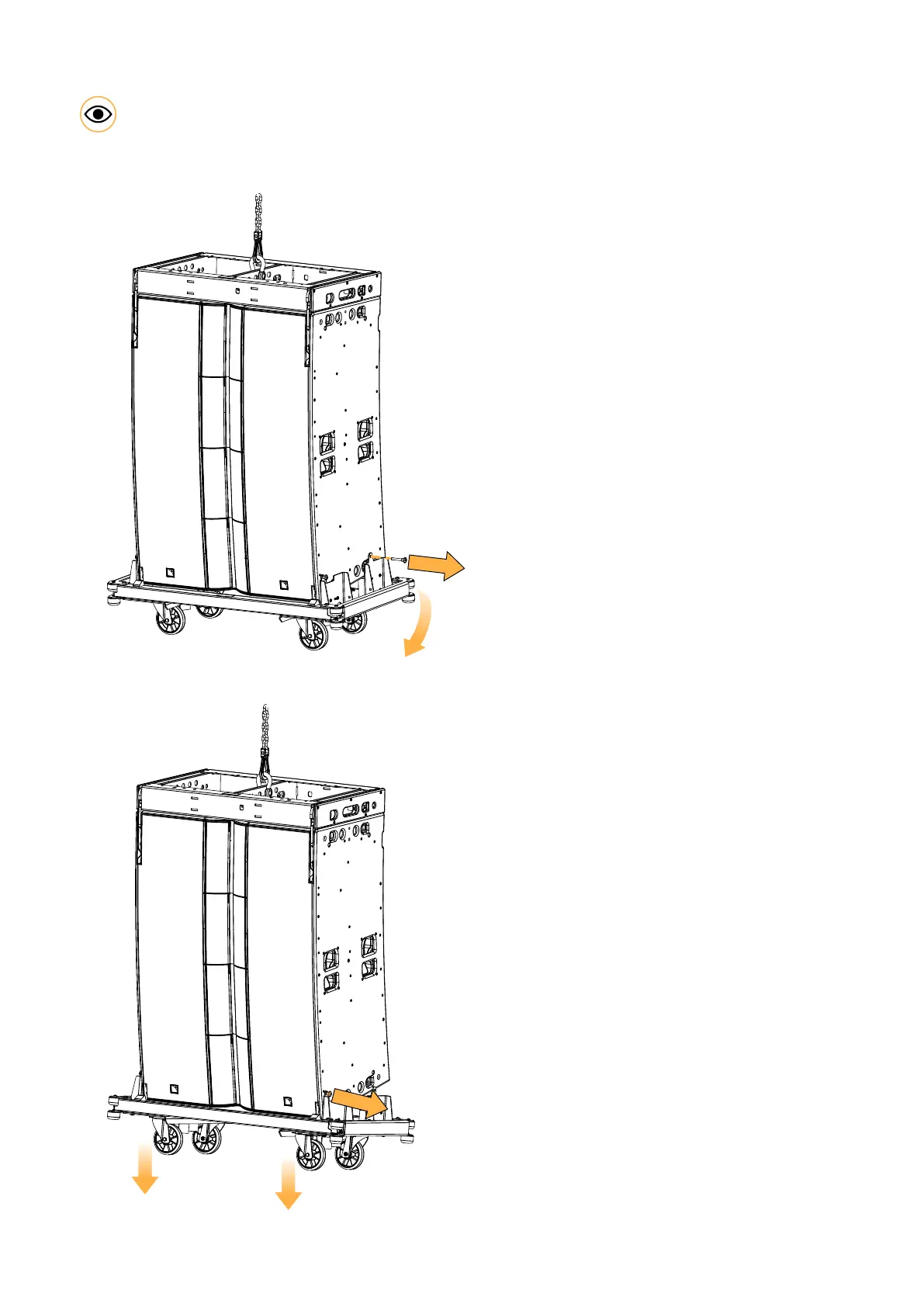

3. Remove the chariot from L2:
a) Hold the chariot with one hand. Remove both back pins.
b) Hold the chariot with one hand. Remove both front pins.
74 L2 owner's manual (EN) version 5.0
