L-Acoustics L2 - Page 87

Rigging procedures

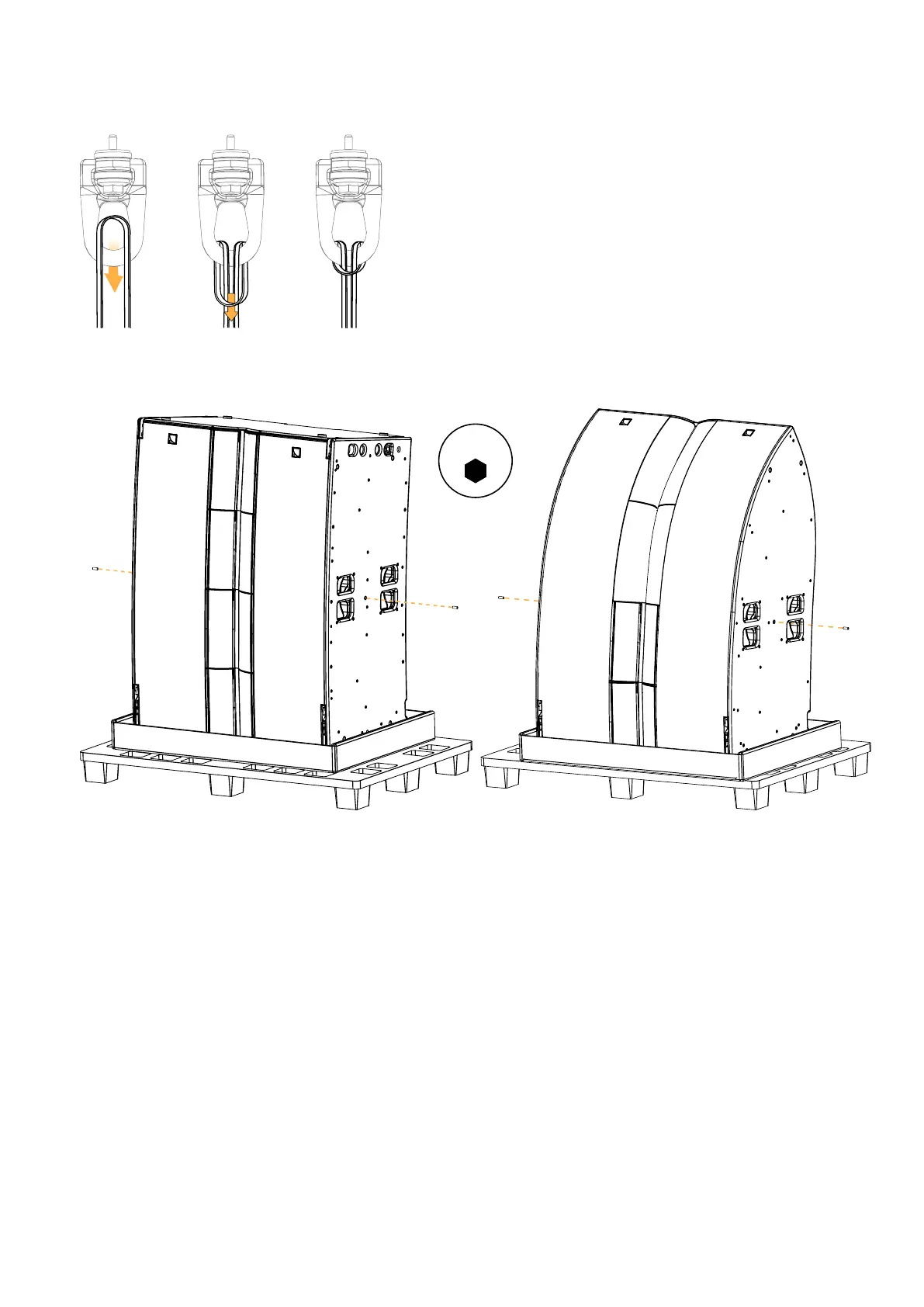

Procedure
1. Make sure each strap is secured to one ring with a lark's head knot.
2. On each side of the enclosure, remove the screw at the center of gravity.
Use the screwdriver with an 8 mm hex bit.
8 mm
Retain the screws for reassembly.
L2 owner's manual (EN) version 5.0 87
