Rigging procedures

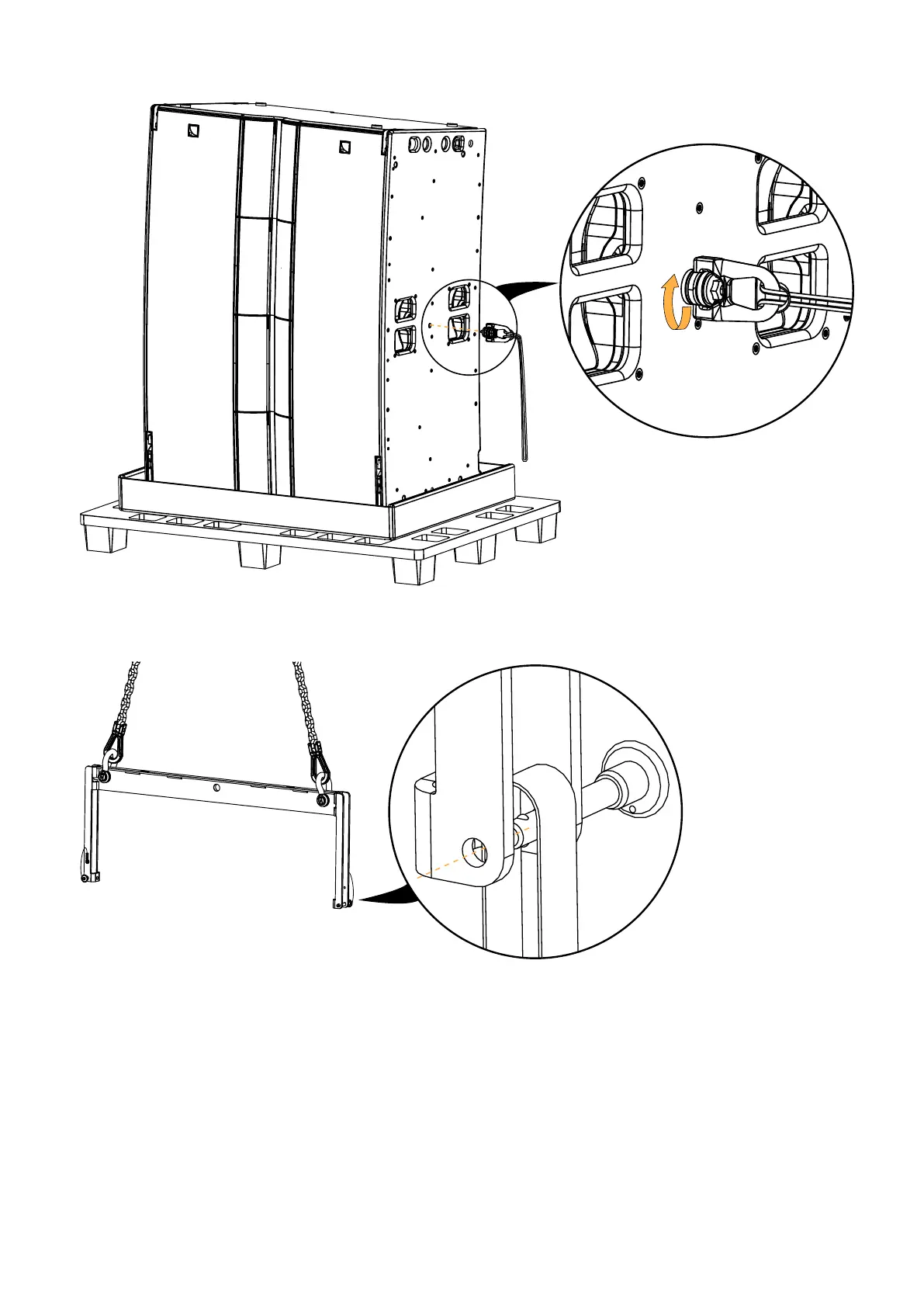

3. Tighten the L2-ROLL rings to the enclosure by hand.
4. Secure L2-RIGBAR to BPCHAIN 1.5T and slightly raise the assembly.
5. Secure the other ends of the straps to L2-RIGBAR through the ball-locking pins in their storage position.
