Labconco Purifier Logic+ 30132 User Manual

Product Service 1-800-522-7658
106

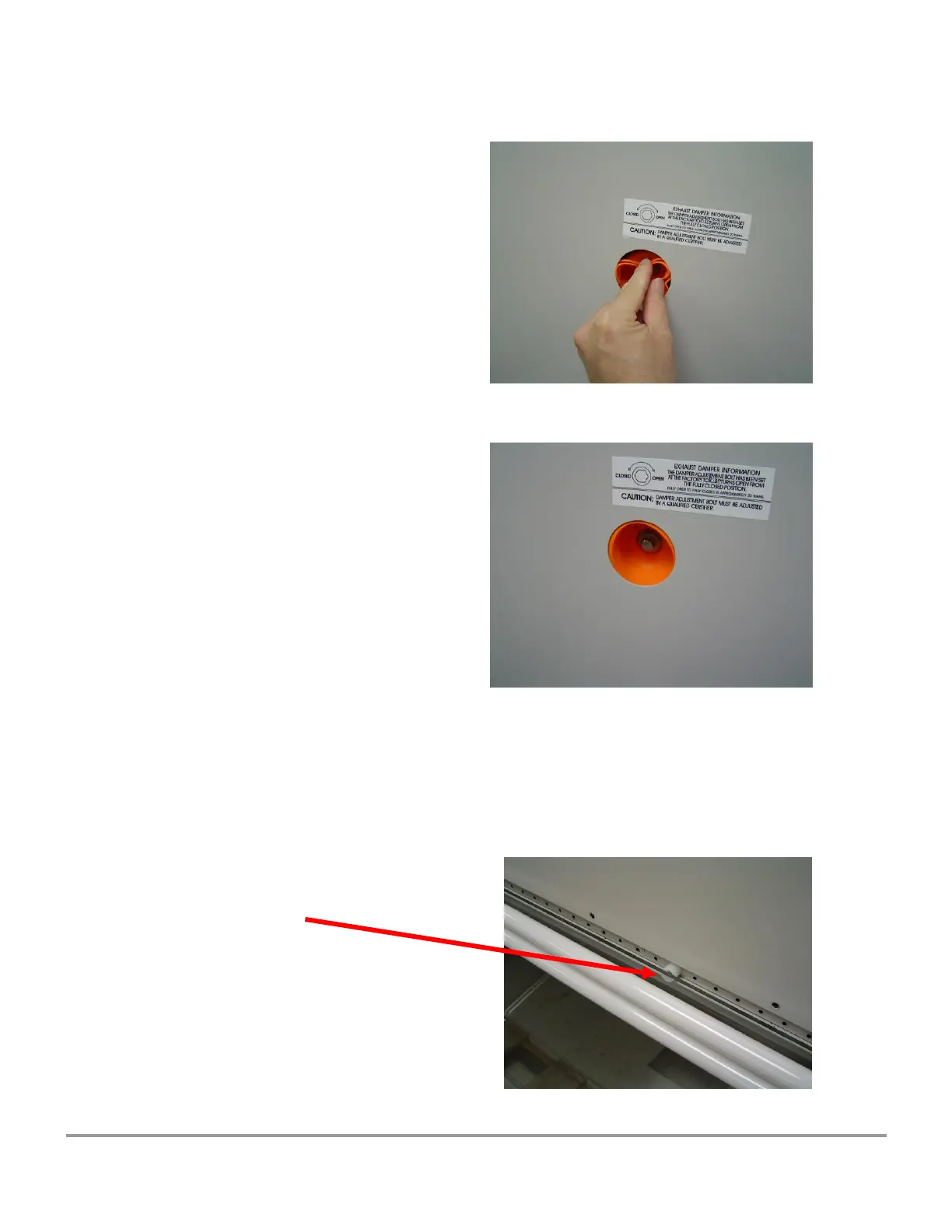

Figure 6-14
Figure 6-15
5. Remove the last two screws. Gently rock the cover, slide it to the left or right, and
swing it out and away from the unit.
NOTE: During disassembly, the blower plenum cover can rest on the center sash
support, as shown in Figure 6-16, to allow repositioning of the panel or your grip on it.
Figure 6-16
Center Sash Support
6.
