The Logic+ Touchpad

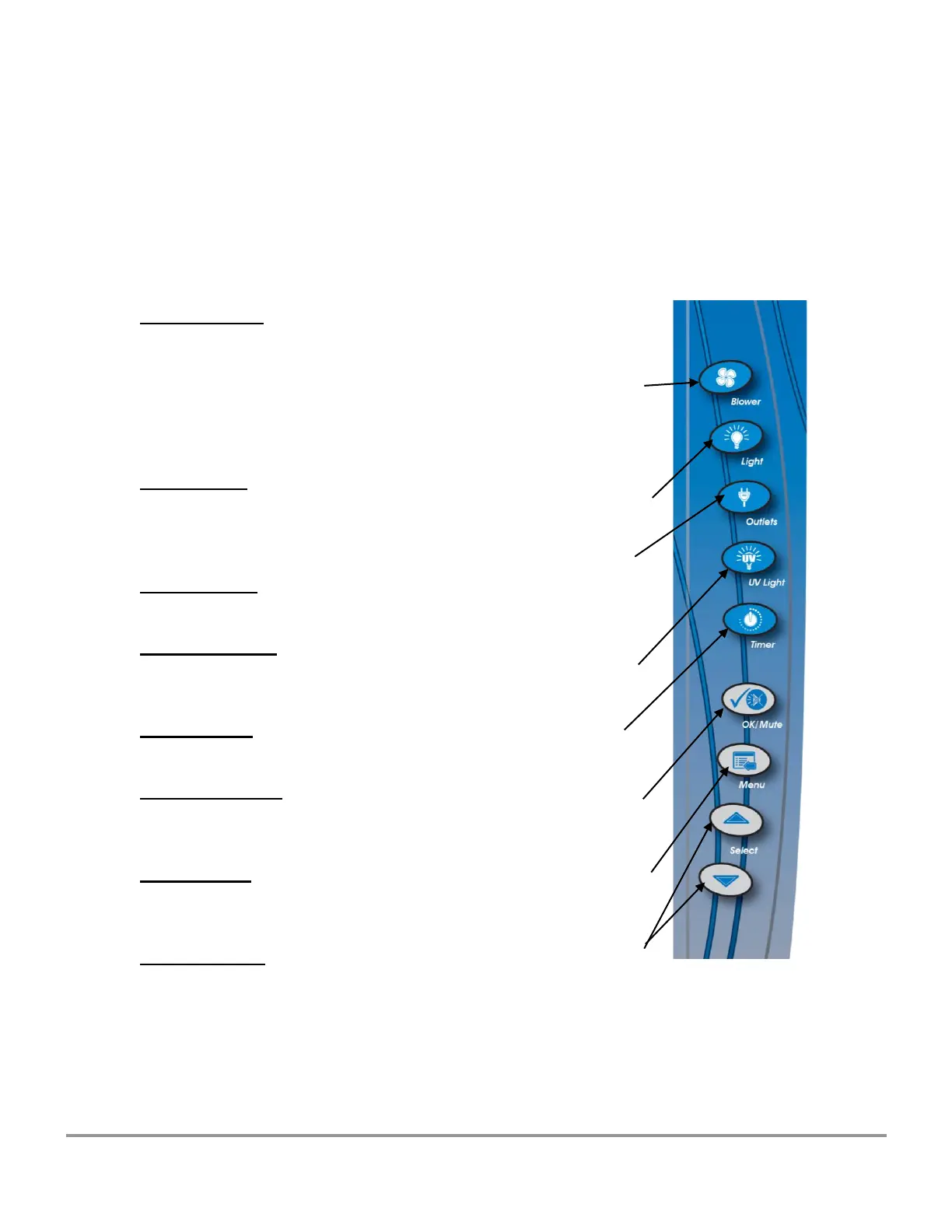

The touchpad of the Logic+ is shown in Figure 5-6. Take a moment to get familiar with
the buttons, their locations and functions. Also familiarize yourself with the display
located on the right side wall. The display will report system functions, such as filter
capacity, timer displays, alarm or error messages, as well as icons that illuminate when
cabinet functions such as UV light and blower are operational.
Blower Button – Starts or stops the cabinet blower. When the
blower is in Smart-Start
TM
mode, opening the sash from the closed
position turns the blower on automatically. In Night-Smart
TM
mode,
when the sash is closed, the motor slows to idle to maintain air
cleanliness in the work area. When the sash is reopened, the
blower resumes normal operation. Pressing this button overrides
Smart-Start and Night-Smart
operation.
Light Button – Turns the fluorescent lamps on or off. Closing the
sash automatically turns the lights off. When the lights are in
Smart-Start mode, raising the sash turns the lights on
automatically.
Outlet Button – Turns the electrical outlets in the work area on or
off.
UV Light Button – Turns the UV lamp on or off. When the UV
lamp is in Smart-Start mode, closing the sash turns the light on.
When the sash is raised, the light turns off automatically.
Timer Button – Allows you to select either a repeating interval
timer, or an elapsed timer (stopwatch).
OK/Mute Button – Mutes all audible alarms for approximately 5
minutes, unless there is a system error alarm. When in the Menu
mode, this button is used to select an option.
Menu Button – This button toggles the display between the
display and menu modes. When in the menu mode, pressing this
button returns you to the previous menu level.
Select Buttons – Allow you to choose different options in the
menu mode.
