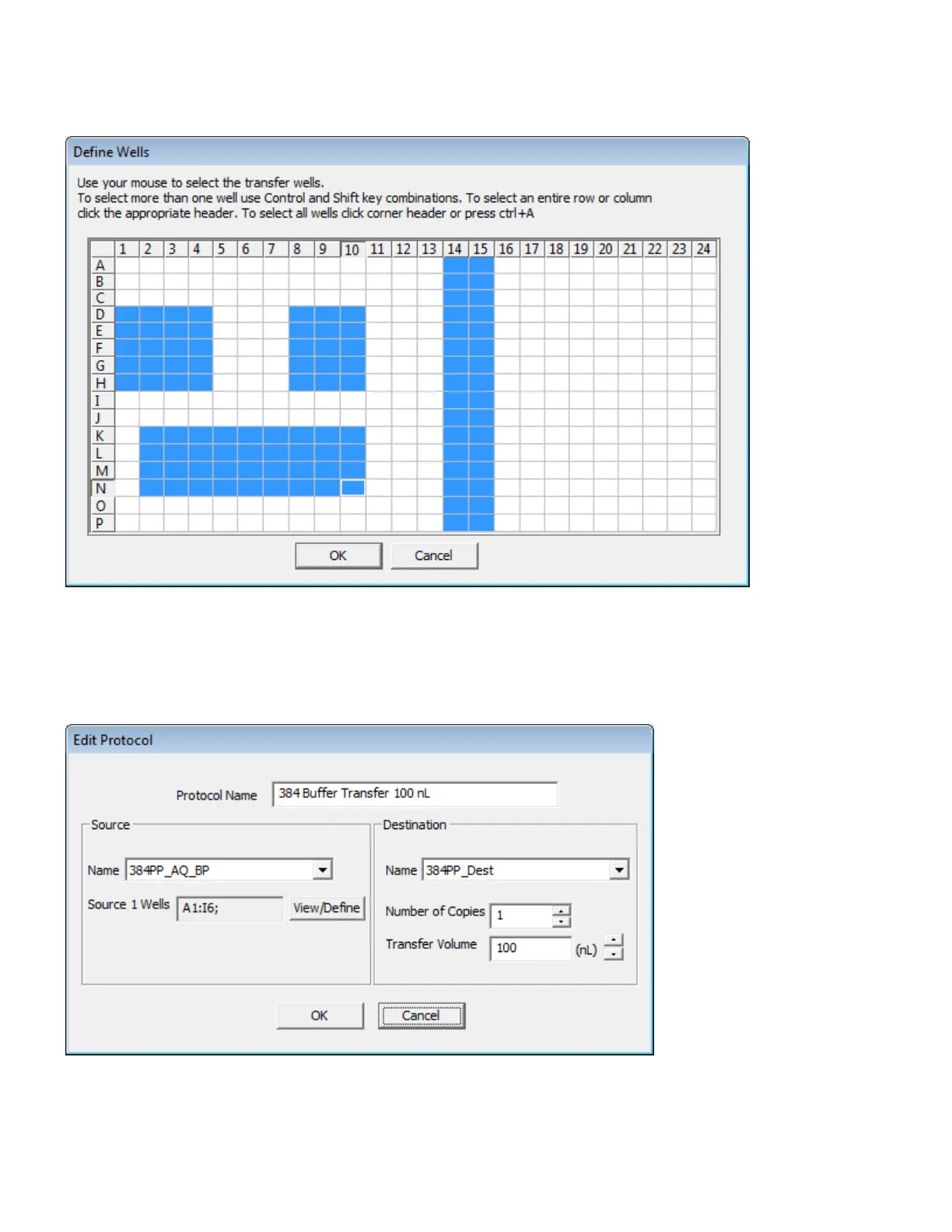

Figure 62: Multiple regions defined in a transfer map
Click the OK button to save the transfer map definition with this protocol.
Edit an Existing Protocol Definition
To edit an existing protocol definition, click the Edit button or double-click the protocol name in the protocol list. One of the
following edit protocol dialog boxes will open:
Figure 63: Edit 384:384 protocol dialog box
103 PN | 001-11665
USER GUIDE | Echo® 525 Liquid Handler User Guide Echo Liquid Handler Software
