Note: It is assumed that the chiller is being set up in a typical laboratory environment. Avoid direct exposure to
water/steam, oil, chemicals, or prolonged sunlight.
2. Ensure the chiller is setup so that there is free airflow around the air inlets at the front of the chiller and at the air outlet and
cooling fins at the back of the chiller.
Note: Do not place the chiller in a sealed enclosure.

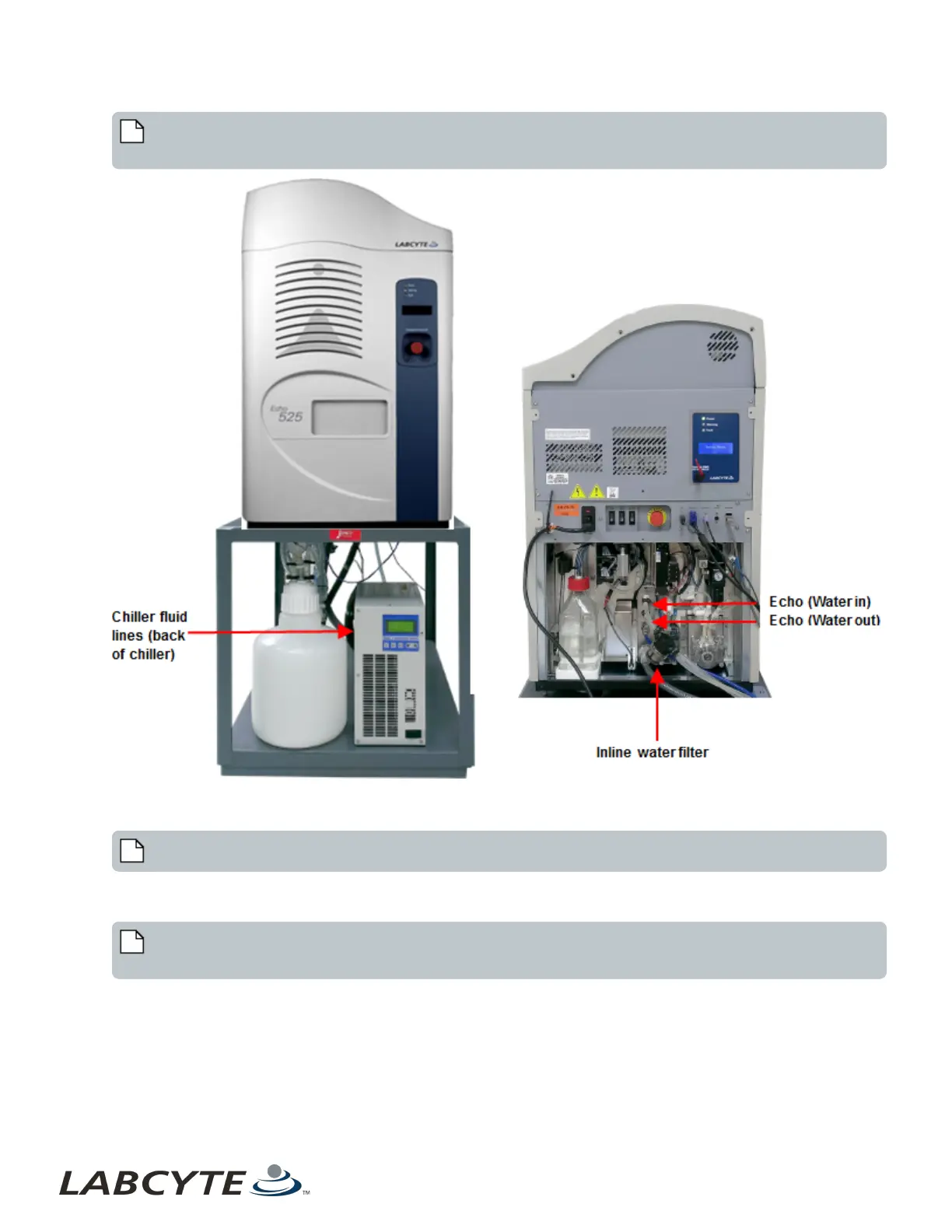

3. Connect the chiller tubing to the Echo (Water in) > Chiller (Water out) and Echo (Water out)๎> chiller (Water in) as shown
above.
Note: The connectors are keyed so they can only be installed in the correct configuration. Do not modify the
connectors.
4. Turn on the Echo pump and allow the fluid line to fill.
5. Connect chiller power cable to a correctly grounded power outlet in your facility using the provided cable.
