Controls and Indicators 65

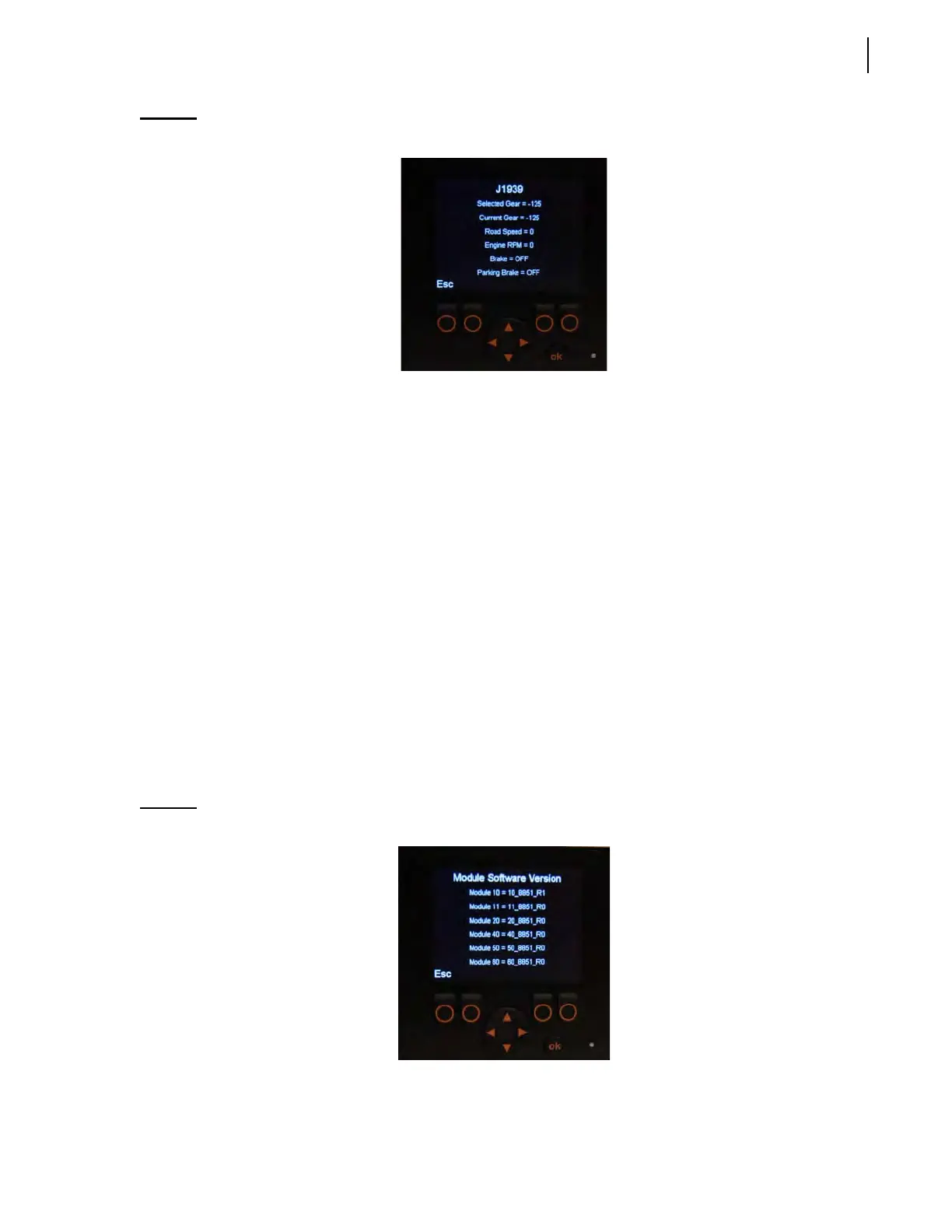

Figure 3-16
J1939 page
Your vehicle is equipped with 2 different CAN-based communication buses:
the J1939 bus, which is used for the chassis equipment; and
the CANopen bus, which is used for the body.
These 2 communication buses are completely independent of one another, except for some specific
data that are transferred from the chassis J1939 bus to Labrie’s multiplexed system, where they are
used. These specific data are the following:
selected gear
current gear
road speed
engine RPM
brake
parking brake
Press “Esc” to return to the preceding page.
Module Software Version
On the Module Software Version page, you will find the software version currently used by each of
the modules installed on the truck and by the master control module.
Figure 3-17
Program Version page
