2 Introduction
The MINIMAX
TM
is composed of a small curved wall body with a capacity of 10 cubic yards and a
2 cubic yard tailgate, making the total loading capacity of the vehicle to 12 cubic yards.

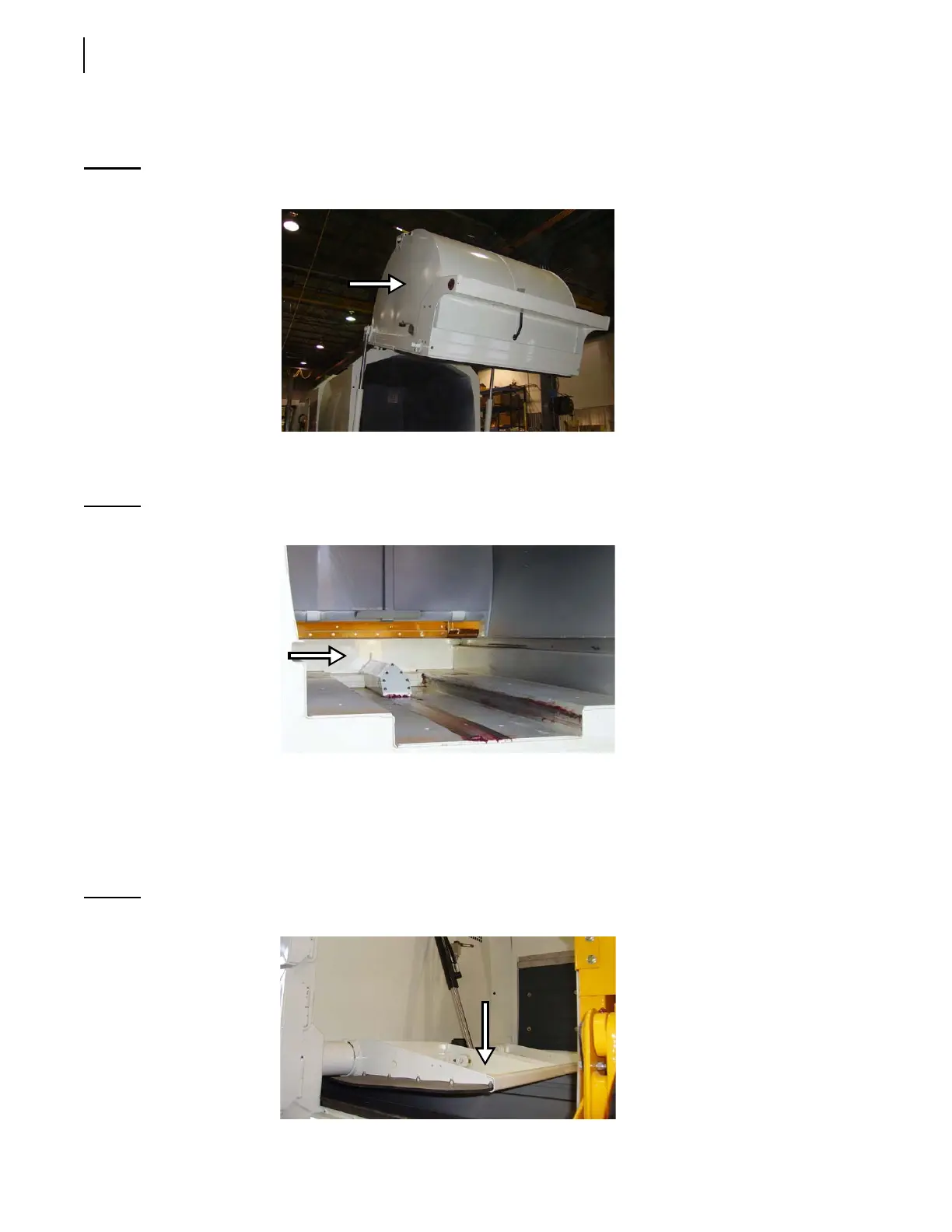

Figure 1-2 Tailgate
The hopper swept volume is 0.92 cubic yard, using an 18-inch packer, which is also used to unload
the body through the tailgate opening. This feature is called the “Auto-Eject Mode”.
Figure 1-3 Packer
The standard packer cycle time is 15 seconds at 1200 RPM, and the “Auto-Eject Mode” cycle takes
40 seconds at 1200 RPM.
The hopper can also be equipped with a full-size crusher panel (optional). It also features a hinged
door on the left-hand side and 1 or 2 hinged doors on the right-hand side (2 doors if an automated
arm is installed).
Figure 1-4 Crusher panel (optional)
