7.6 REPLACING THE CARBON BRUSHES
Use only original LÄGLER
®
carbon brushes (part number in
Section 11, Spare parts FLIP
®
)!
In order to prevent damage to the collector from excessively
worn-out carbon brushes, LÄGLER
®
carbon brushes with safety
contacts are used. These safety contacts automatically switch
off the motor when the wear limit is reached. The carbon brushes
should, however, be replaced at least once a year to avoid damage
to the motor!
ATTENTION!
• The carbon brushes must be replaced at the latest upon
the reaching of the wear limit and the automatic switching
off of the motor! While the automatic switching off can be
prevented by pressing and holding the switch, this will
cause permanent damage to the switch and the collector!
These parts will then have to be replaced!
There are no warranty claims for damages of this nature!
• Use only original FLIP
®
carbon brushes with safety
contacts (part number in Section 11, Spare parts FLIP
®
)!
• In order to extend the service life of the motor, a qualified
electrician should remove the carbon remnants on
the collector every other time the carbon brushes are
replaced!
1 Switch off the machine and pull the power plug out of the
socket!
WARNING!
RISK OF DEATH from electrical shock:
• When disassembling the motor, the power plug must
always be removed from the socket!
• Make sure that no parts fall into the motor!

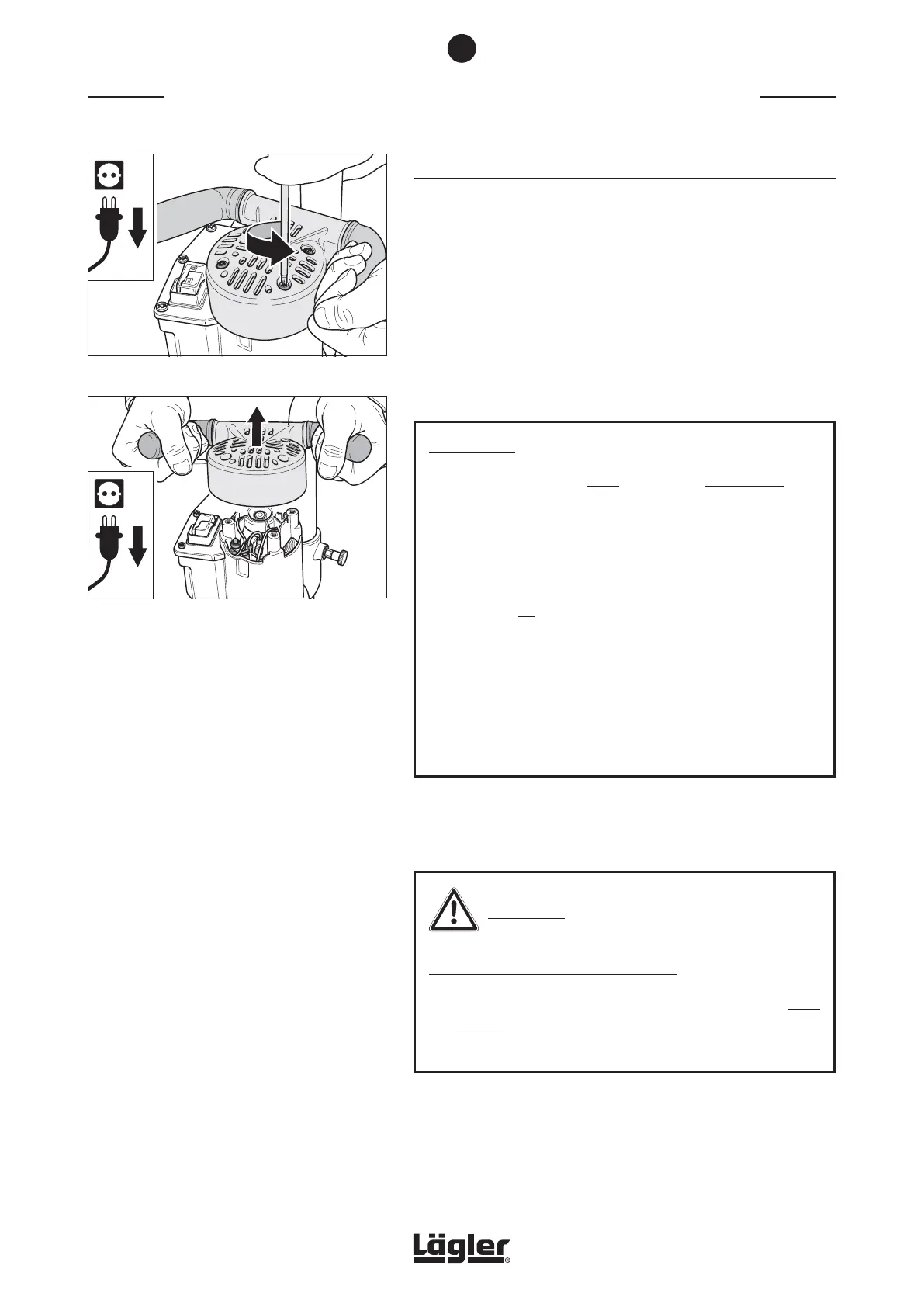

2 Undo the four fixing screws of the handle (fig. 52) and remove
it from the motor housing (fig. 53). Make sure that no parts
fall into the motor when doing so!
MAINTENANCE WORK AND REPLACEMENT OF WEARING PARTS
7
Fig. 53 Remove the handle.
Make sure that no parts fall into the motor!
Fig. 52 Remove the four fixing screws of the handle.
