Chapter 1: Introduction
1.1 Product
Description
Features:
D Operates down to 300 mK with appropriate NTC RTD sensors
D Four sensor inputs and four independent control outputs
D Two PID control loops: 100 W and 50 W into a 50 ) or 25 ) load
D Autotuning automatically collects PID parameters
D Automatically switch sensor inputs using zones to allow continuous measure-
ment and control from 300 mK to 1505 K
D Custom display setup allows you to label each sensor input
D Ethernet, USB, and IEEE-488 interfaces
D Supports diode, RTD, and thermocouple temperature sensors
D Sensor excitation current reversal eliminates thermal EMF errors for
resistance sensors
D
±10 V analog voltage outputs, alarms, and relays
The first of a new generation of innovative temperature measurement and control
solutions by Lake Shore, the Model 336 temperature controller comes standard
equipped with many advanced features promised to deliver the functionality and
reliable service you’ve come to expect from the world leader in cryogenic thermome-
try. The Model 336 is the only temperature controller available with four sensor
inputs, four control outputs, and 150 W of low noise heater power. Two independent
heater outputs providing 100 W and 50 W can be associated with any of the four sen-
sor inputs and programmed for closed loop temperature control in proportional-inte-
gral-derivative (PID) mode. The improved autotuning feature of the Model 336 can be
used to automatically collect PID parameters, so you spend less time tuning your con-
troller and more time conducting experiments.
The Model 336 supports the industry’s most advanced line of cryogenic temperature
sensors as manufactured by Lake Shore, including diodes, resistance temperature
detectors (RTDs) and thermocouples. The controller’s zone tuning feature allows you
to measure and control temperatures seamlessly from 300 mK to over 1,500 K by
automatically switching temperature sensor inputs when your temperature range
goes beyond the usable range of a given sensor. You’ll never again have to be con-
cerned with temperature sensor over or under errors and measurement continuity
issues. Alarms, relays, and ±10 V analog voltage outputs are available to help auto-
mate secondary control functions.

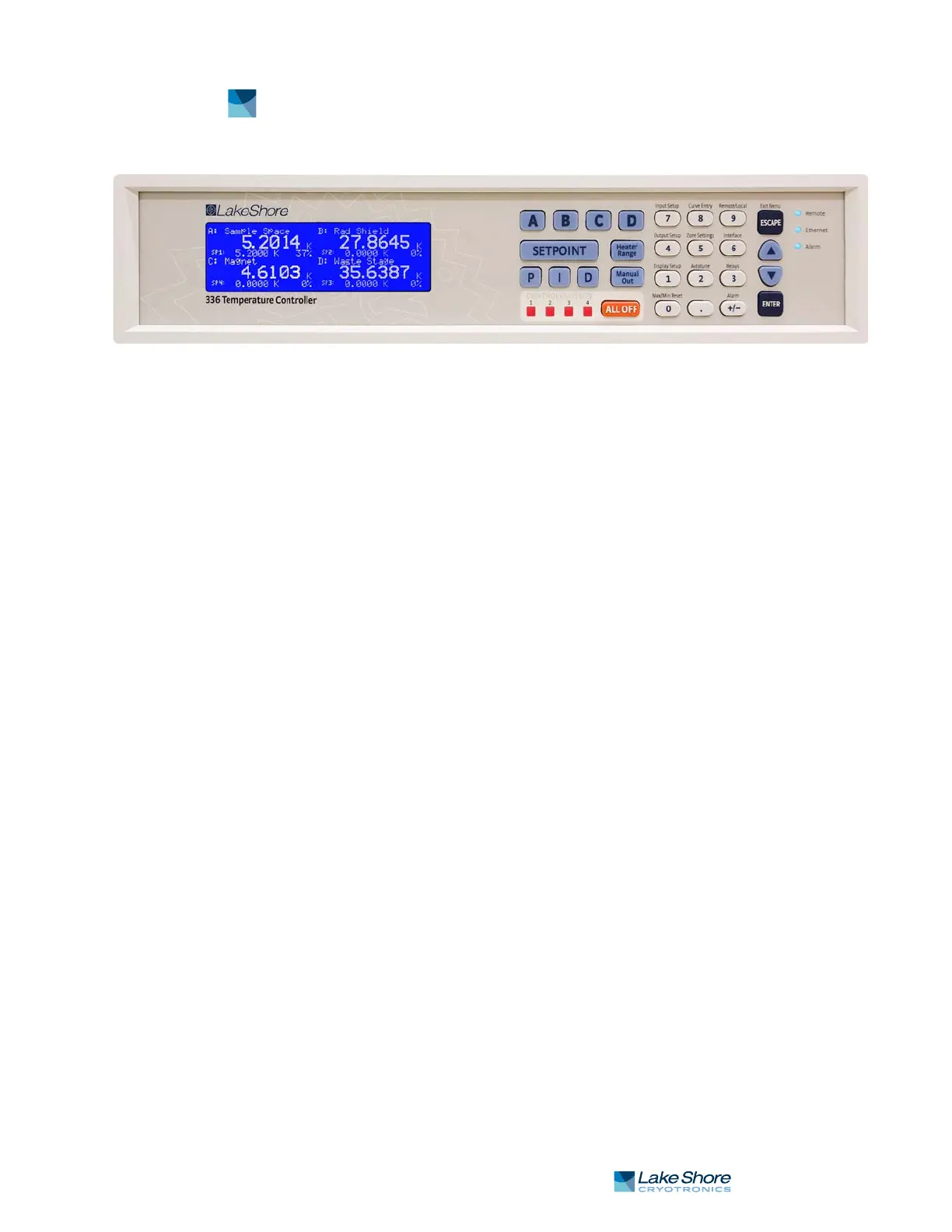

FIGURE 1-1 Model 336 front view
