Installing Remote Syrup Pumps - Bag In Box
A
B
C
A. Syrup Pump
B. CO
2
Line
C. Fitting
D. Oetiker Pliers
D

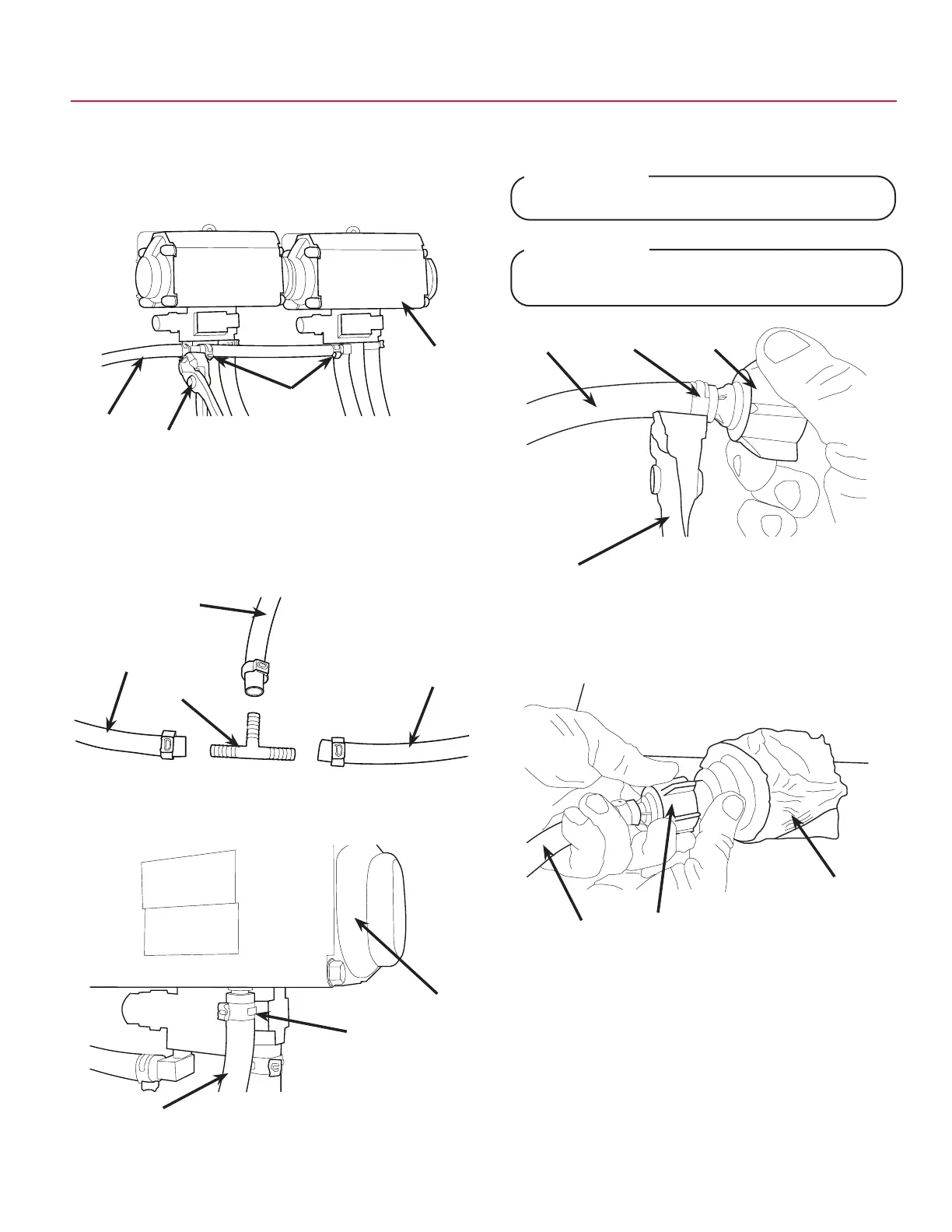

1. Install BIB rack and remote pumps according to
manufacturers’ instructions.
2. Once pumps and BIB rack are installed, measure and
cut tubing to length between the pump CO
2
inlets, then
connect tubing to all pumps.
3. Using tubing cutters, cut the CO
2
supply line to the syrup
pumps and install tee fitting. Then, route the appropriate
tubing from the tee fitting to the syrup pumps and to the
unit.
A
B
C
A. Syrup Pump Outlet
B. Syrup Pump
C. Fitting
4. Connect tubing from dispenser syrup inlet to the syrup
pump outlet fitting. Repeat for each syrup line/pump.
A. Tee Fitting
B. CO
2
Supply Line
C. Line to Unit
D. Line to Syrup Pump
A
B
C
D
Use proper connector for syrup manufacturer.
! ATTENTION
A. Syrup Pump Inlet
B. Fitting
C. BIB Connector
D. Oetiker Pliers
A
B
C
D
A. Syrup Pump Inlet
B. BIB Connector
C. BIB Syrup Container
A
B
C
5. Install BIB (bag in box) connectors onto the syrup pump
inlet tubing.
6. Connect syrup BIBs to connectors. Repeat for each syrup
line/pump.
Utilisez le connecteur approprié spécifique au fabricant
de sirop.
! ATTENTION
