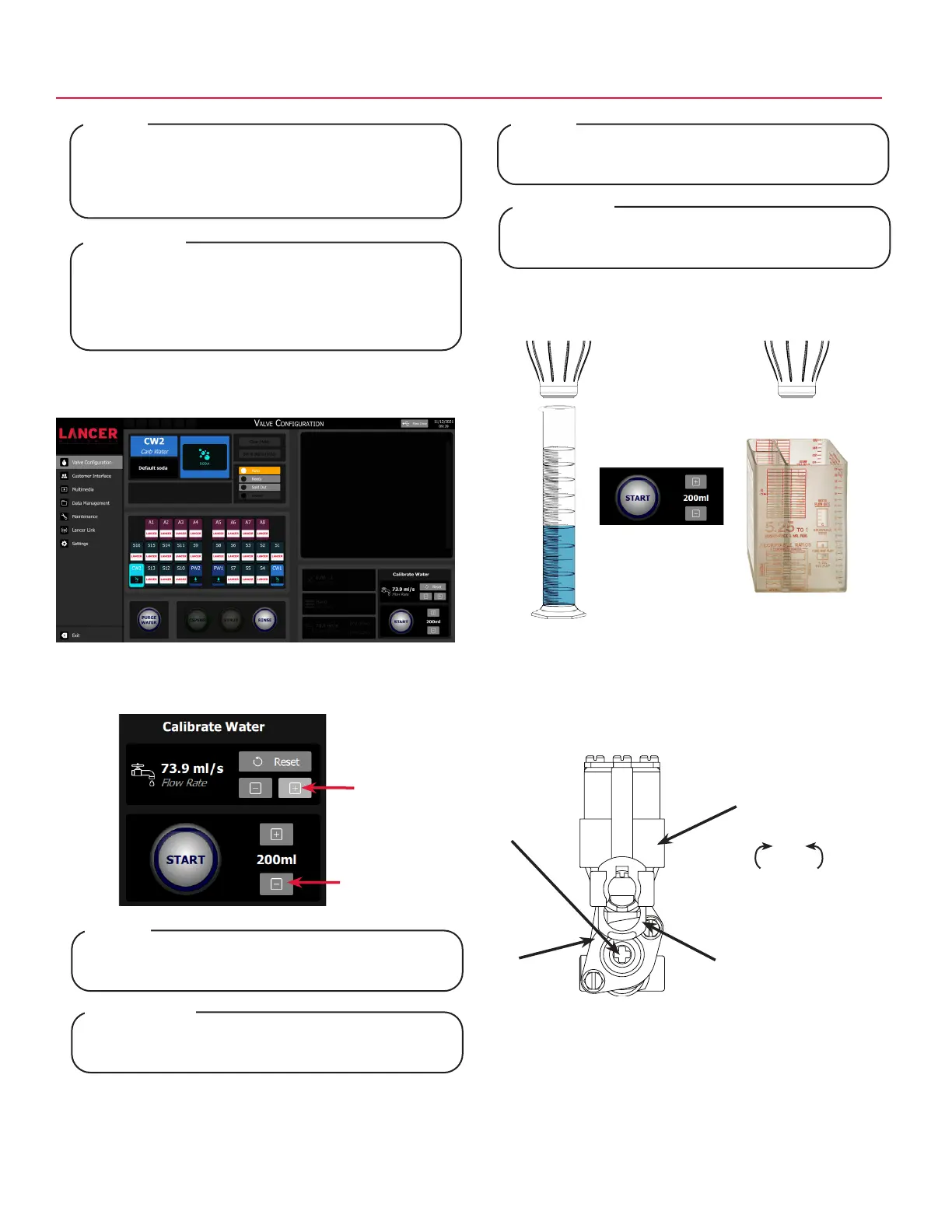

Valve Configuration - Plain/Carb Water Calibration
1. Tap Valve Configuration on the navigation menu.
2. Tap on the Water Valve to be calibrated.
5. With a graduated cylinder or ratio cup placed in a position
below the nozzle, tap the Start button. The unit will dispense
the volume designated in the previous step.
6. Examine the dispensed volume in the graduated cylinder. If
the dispensed volume does not match the value entered on
the screen in step 5, use a screwdriver to adjust the water
flow control.
3. Adjust the water flow rate to 73.9 ml/s using the +/- buttons
in the Calibrate Water pane (roughly equates to 2.5 fl oz/s,
which is normal for a 3.0 fl oz/s finished drink).
4. Adjust the desired dispense amount to 200 ml using the
+/- buttons. The provided graduated cylinder or ratio cup
will be used to calibrate the plain and carbonated water
module.
7. See Plumbing Diagram on front of machine or page 44 for
reference.
8. Repeat steps 5 and 6 until the designated volume is
achieved.
9. Repeat calibration for the other water modules.
Graduated Cylinder
Ratio Cup
(Not Included)
A
B
C
D
Increase Decrease
A. Flow Control
B. Valve Retainer
C. Solenoid
D. Valve Body
Fill to 200 ml
The larger the volume dispensed, the more accurate
the results.
NOTE
Tap the Reset button to restore the flow rate to the
default setting.
NOTE
Appuyez sur le bouton Reset (Réinitialiser) pour
restaurer le débit d’eau par défaut.
REMARQUE
Plus le volume distribué est grand, plus les résultats
sont précis.
REMARQUE
Ensure there is ice on the cold plate and the lines are
cold before attempting to set the flow rates on the
valves. The drink temperature should be no higher
than 40°F (4.4°C) when flow rates are set.
NOTE
Assurez-vous qu’il y a de la glace sur la plaque froide
et que les conduites sont froides avant de tenter de
régler les débits sur les vannes. La température de la
boisson ne doit pas dépasser 40 ° F (4,4 ° C) lorsque
les débits sont réglés.
