PLMNL0243 REV. A, Effective Date: 03/24/16 61 FiberMINI ™ 2.0 Operation Manual

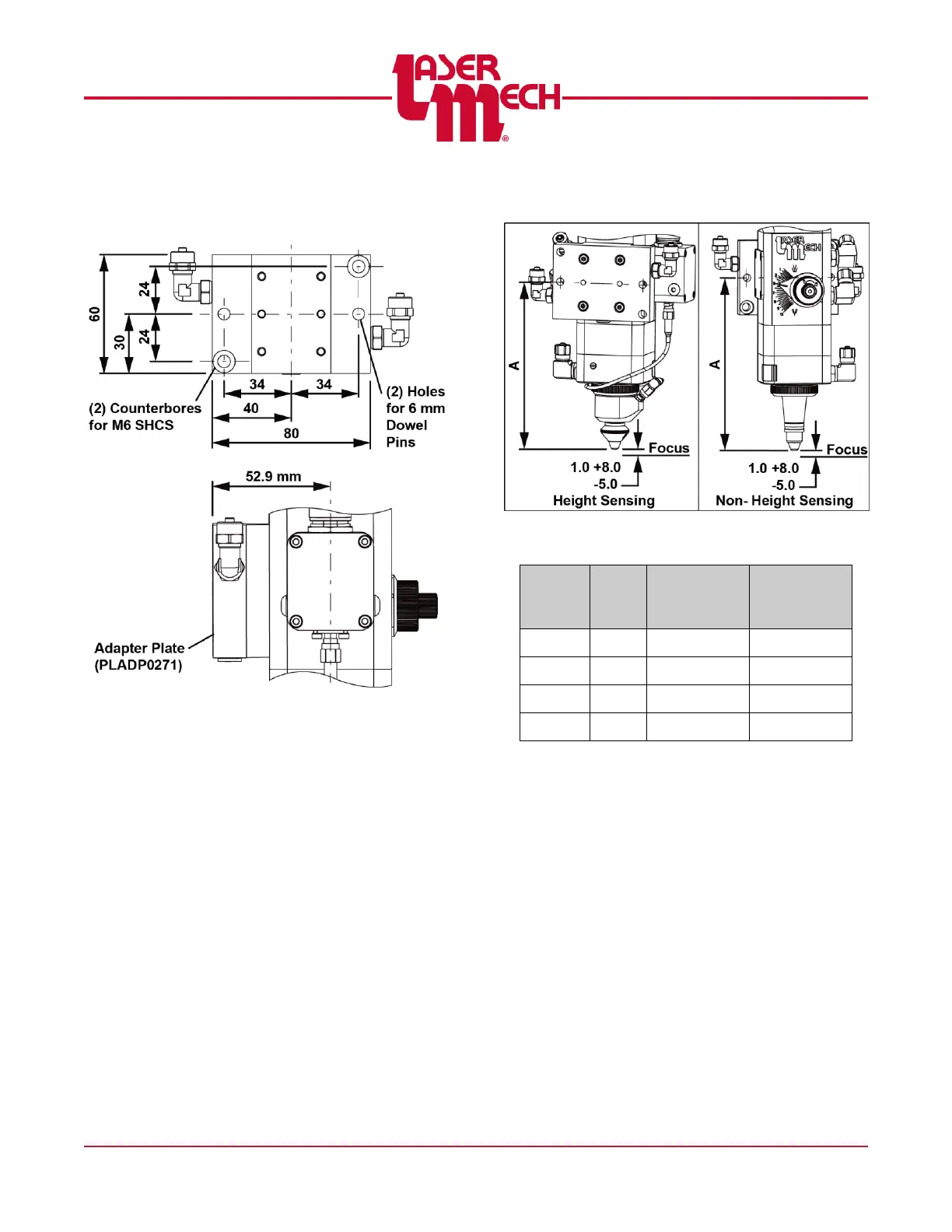

 Adapter Mount Plate without Crash
Protection: See Figure 84.
Figure 84
 Cutting End Effector: See Figure 85.
Figure 85
Focal
Length
(mm)
A
(mm)
ALH
Spacer
LMB
Spacer
100
113.4
None
PLSBA0268
125
138.4
PLSBA0261
PLSBA0268
150
163.4
PLSBA0262
PLSBA0269
200
213.4
PLSBA0262
PLSBA0270
