Laser Technology IMPULSE LR User Manual

U
SING THE
B
UTTON
P
ANELS
Page 15 Electronic Copy of LTI’s Impulse User’s Manual 8
th
Edition © October 1998
You control the Impulse through two 3-button
panels on either side of the instrument. One panel
is always designated the primary button panel; the
other, the secondary panel. You can tell which
panel is primary by the LEFT or RIGHT indicator
showing in the upper left quadrant of the back-
panel display screen.
The two button panels are identically laid out. The
button nearest the rear panel is the “Fire” button.
The middle button is the “Forward” button. And the
button nearest the front panel is “Back.”
In the Impulse lexicon, buttons on the primary
control panel are referred to by the button name,
while buttons on the secondary panel are referred
to by the name suffixed with a ‘2.’ So “Fire” means
the primary Fire button; “Fire2” means the
secondary Fire button.

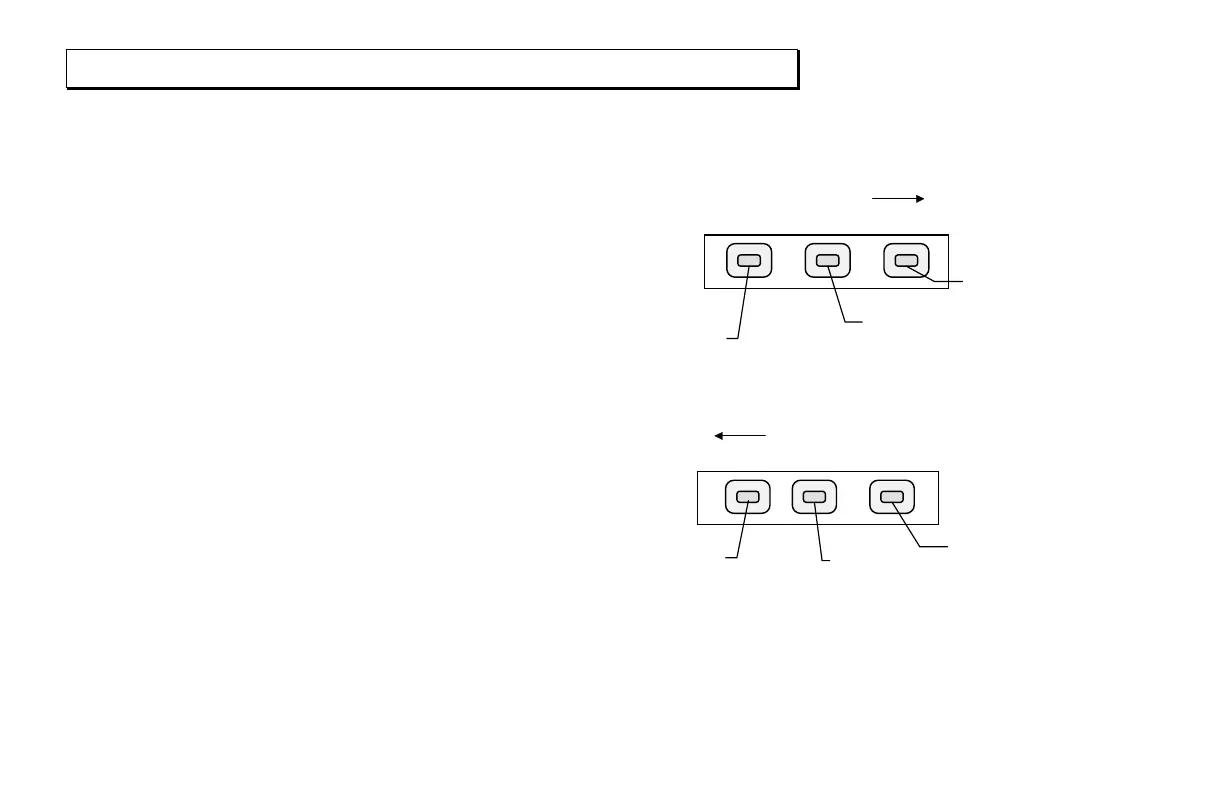

rear of instrument
Left-side Button Panel
Button 1
(“Fire”)
Button 2
(“Forward”)
Button 3
(“Back”)
(
dis
p
la
y
side
)
(
dis
p
la
y
side
)
Ri
g
ht-side Button Panel
Button 3
(“Back”)
Button 2
(
“Forward”
)
Button 1
(“Fire”)
rear of instrument
