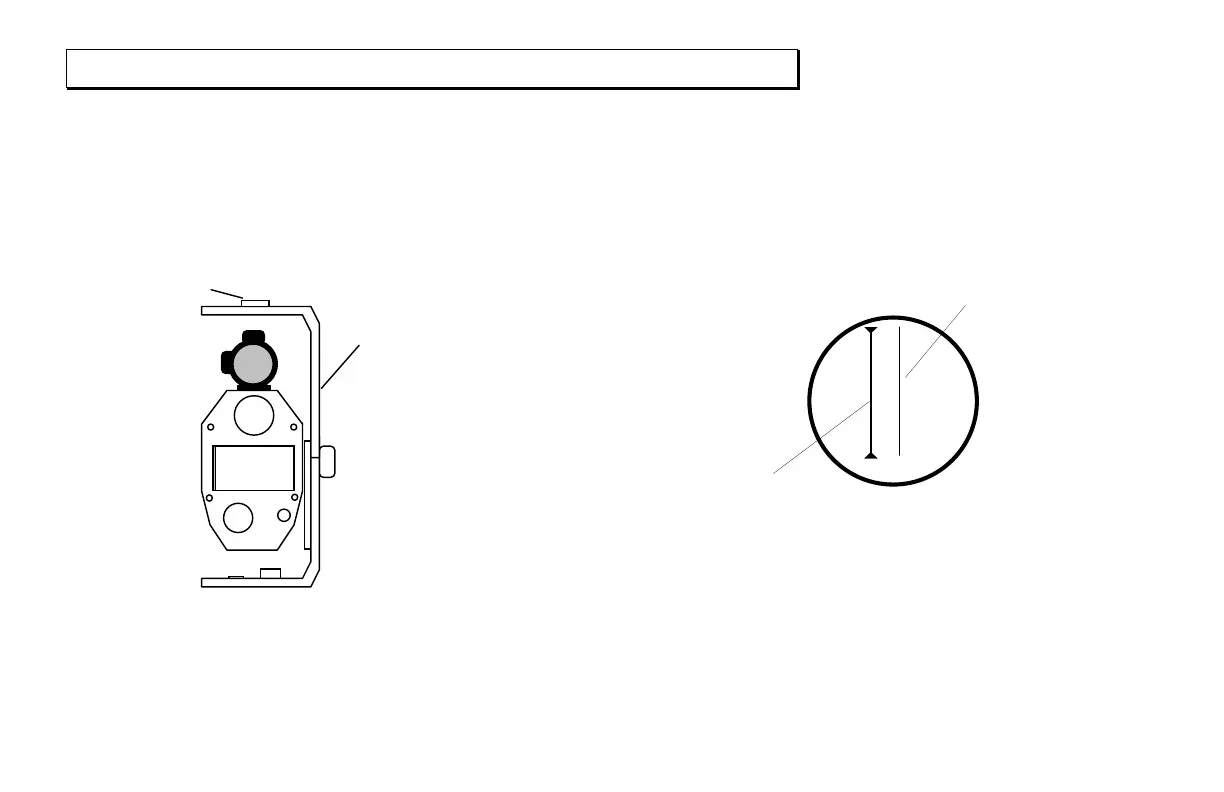

Compass Mount
The compass mount attaches to the yoke and
extends over the top of the mounted instrument. On
top of the mount is a housing that fits over the
Suunto compass and holds it in place.
Compass mount
C
ompass
h
ous
i
ng
Compass
The compass features two hairlines, one of which is
movable. The fixed hairline is for reading the
magnetic bearing; the movable hairline is for
reading a bearing corrected for declination.
E
W
Fixed hairline
Movable hairline
