LaserMech FiberCUT ST - Digital Inputs; Height Select Bits (HS1 - HS3); Teach; Center of Travel (COT)

PLMNL0199 REV. J Effective Date: 08/05/21 8 FiberCUT
®
ST Operation Manual

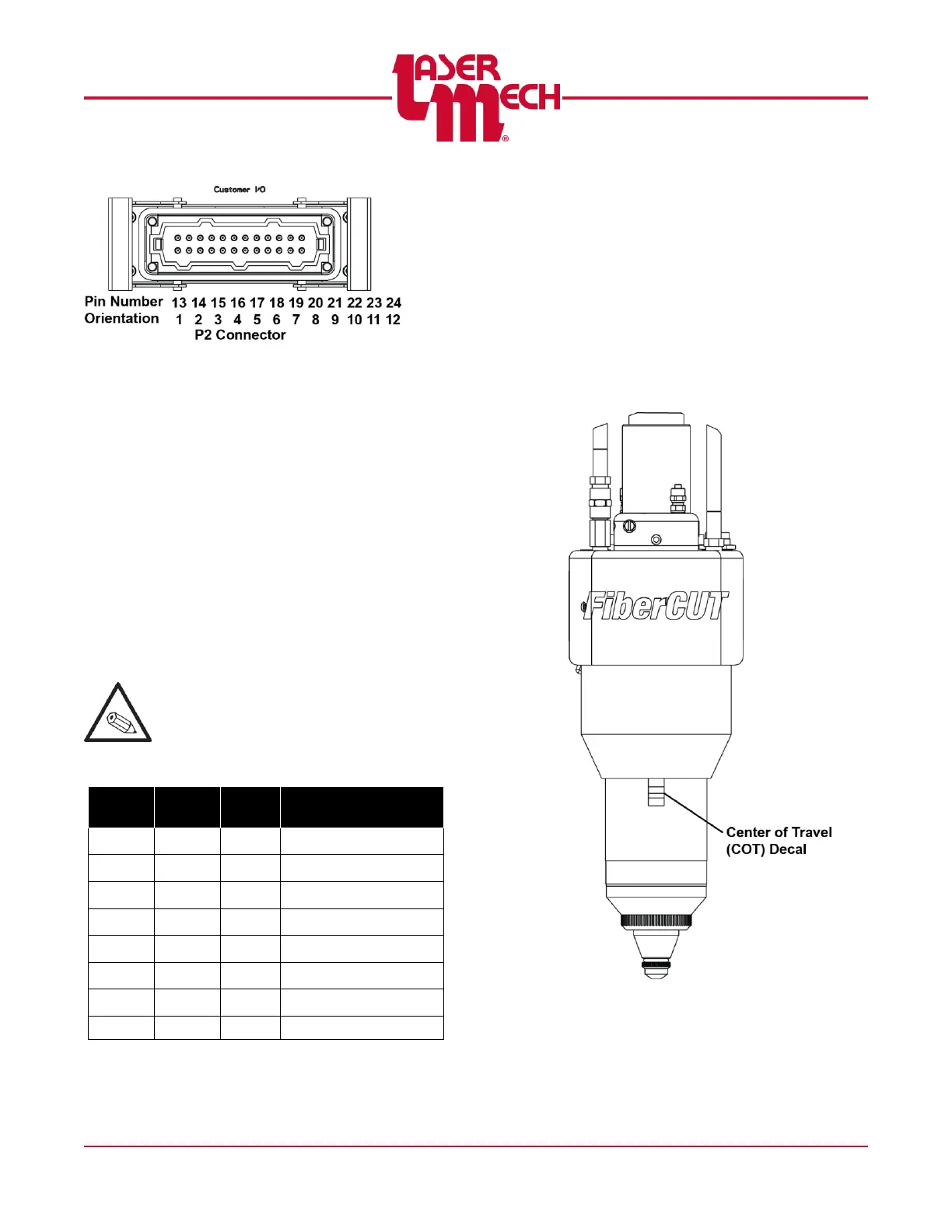

Figure 14
3.3 Digital Inputs
 Specifications: 5 to 24VDC, 10mA at
24V
The inputs are configurable for connection
to either sourcing or sinking outputs
depending on the connection made to the
input common.
3.3.1 Height Select Bits (HS1 – HS3)
The three discrete height select bits
activate seven standoff heights. When
all height select bits are off, the head
will return to its retracted position.
Note: The height select bits are only
operative if the analog input enable
(AIE) is off.
The • symbol indicates ON.
HS1
HS2
HS3
STANDOFF
HEIGHT
•
0.5mm
•
0.75mm
•
•
1.0mm
•
1.25mm
•
•
1.5mm
•
•
1.75mm
•
•
•
2.0mm
Head Retracted
3.3.2 Teach / Center of Travel (COT)
The COT input sets the head in the
fixed center of travel position. When
teaching the motion system path, it is
preferable to have the FiberCUT
®
head in the COT position.
 At the COT position, the decal on
the telescoping tube will have half
of the green section exposed. See
Figure 15.
Figure 15
 COT has precedence over HS1,
HS2 and HS3.
