PLMNL0199 REV. J Effective Date: 08/05/21 51 FiberCUT
®
ST Operation Manual
24. Reattach the fiber and communication
cables. See Section 6.6.
Figure 65
25. Turn the power back on to the
FiberCUT
®
head. See Section 6.6.
6.10 Servicing the Manifold Seal
Before opening any part of the head,
clean off the dust and/or process debris
according to Section 6.2.
1. Clean the outside of the head
according to Section 6.2.
To remove the manifold seal:

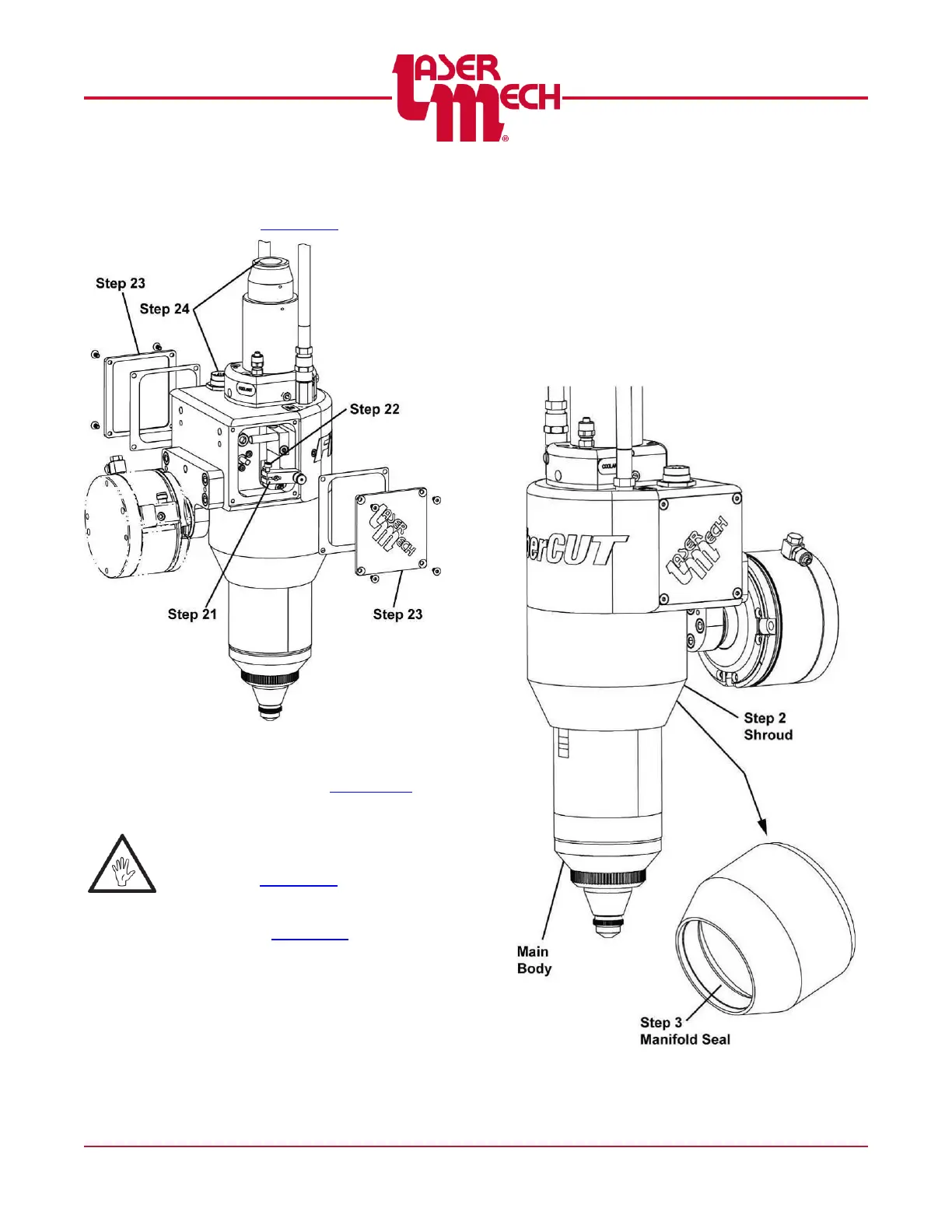

For steps 2 and 3, see Figure 66.
2. Unscrew the shroud from the main
body.
It may feel stiff because of the
seal.
3. Use an appropriate tool to peel the
manifold seal off of the shroud.
Figure 66
