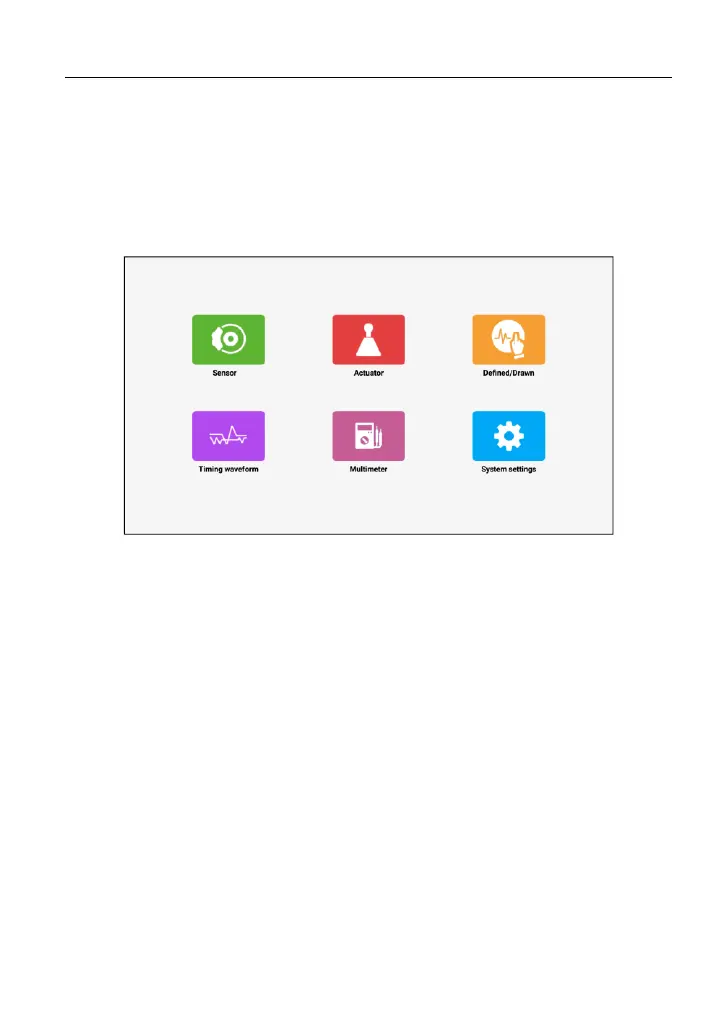

3) Start the diagnostic tool and access the toolbox. Tap Sensor Simulator to
access the job menu of sensor.
2.2 Job Menu
The sensor module is mainly divided into five functional modules.
1) Sensor: Use output voltage or waveform to simulate the working status of
the on-board sensor, so as to accurately judge the quality of the sensor and
reduce blind replacement of accessories.
2) Actuator: Used to output PWM signal to drive the on-board coil actuator.
3) Defined/Drawn: Users can customize sensor waveforms to facilitate future
sensor signal simulation.
4) Timing waveform: Customize timing waveform to match the engine
(crankshaft + camshaft), and output in the same phase.
5) Multimeter: universal multimeter functions.
