X-431 Module S2 User Manual

Operation method:

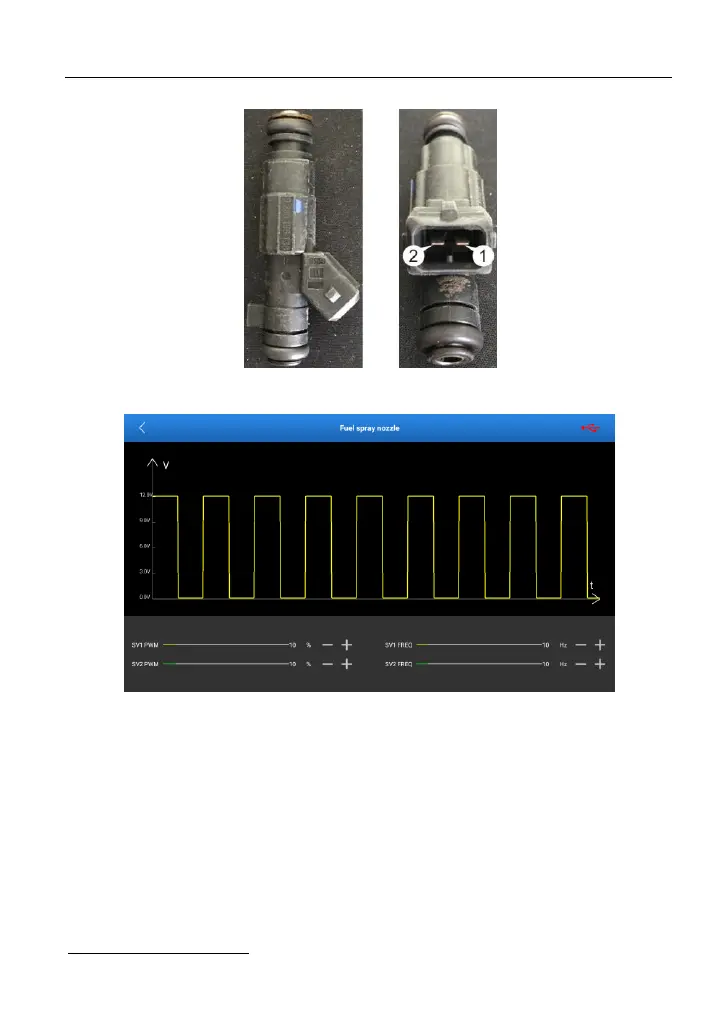

Output ports: solenoid 1 (SV1) and solenoid 2 (SV2)

Output type: adjustable duty cycle square wave

Drag the SV1 PWM slider to change the output duty cycle of SV1. Drag the SV1

FREQ slider to change the output frequency of SV1.

Drag the SV2 PWM slider to change the output duty cycle of SV2. Drag the SV2

FREQ slider to change the output frequency of SV2.

4.2.7 VVT solenoid valve

Wiring mode:

Camshaft exhaust valve
