4.2 How to Operate
The actuators are classified as follows: independent ignition module (COP), idle
speed motor, EGR valve, carbon can solenoid valve, turbocharged solenoid
valve, fuel spray nozzle, VVT solenoid valve, electronic throttle valve assembly,
air conditioning fan.
*Remarks: The types of actuators are not limited to those given above, but their
working principles are the same. You can drive an actuator on any page under the
condition of knowing the working parameters of the actuator. For example, actuator A
is not listed above, but its working parameters are similar to the fan, you can drive
actuator A on the page of "Electronic throttle valve assembly, air conditioning fan".
Remarks: The following waveform is a sample waveform, not the actual output
waveform.

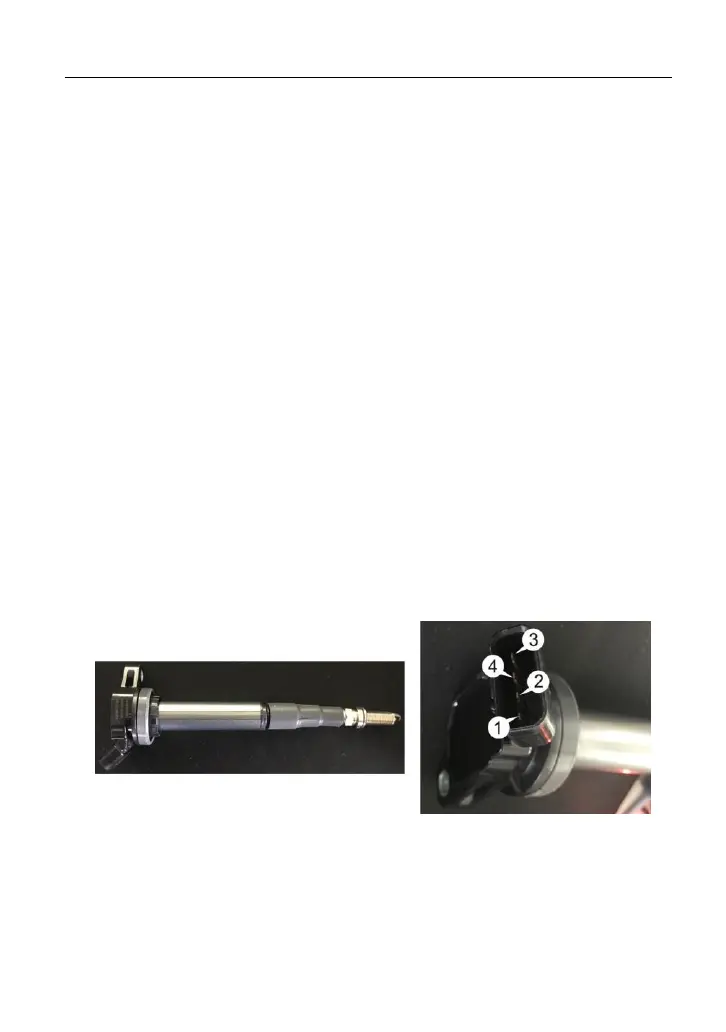

4.2.1 Independent Ignition Module (COP)
Wiring mode:
Line 1: Solenoid -
Line 2: CH1\2 grounded
Line 3: Solenoid +
Line 4: CH1\2 output
Operation method:
