5.
Defined/Drawn
Defined means that users operate by themselves with no special restriction and
various defined waveforms can be switched and output at any time. In addition
to customization, it also supports hand-drawing, which has a great degree of
freedom.
5.1 Defined
Refer to Chapter 3.1 for connection methods.

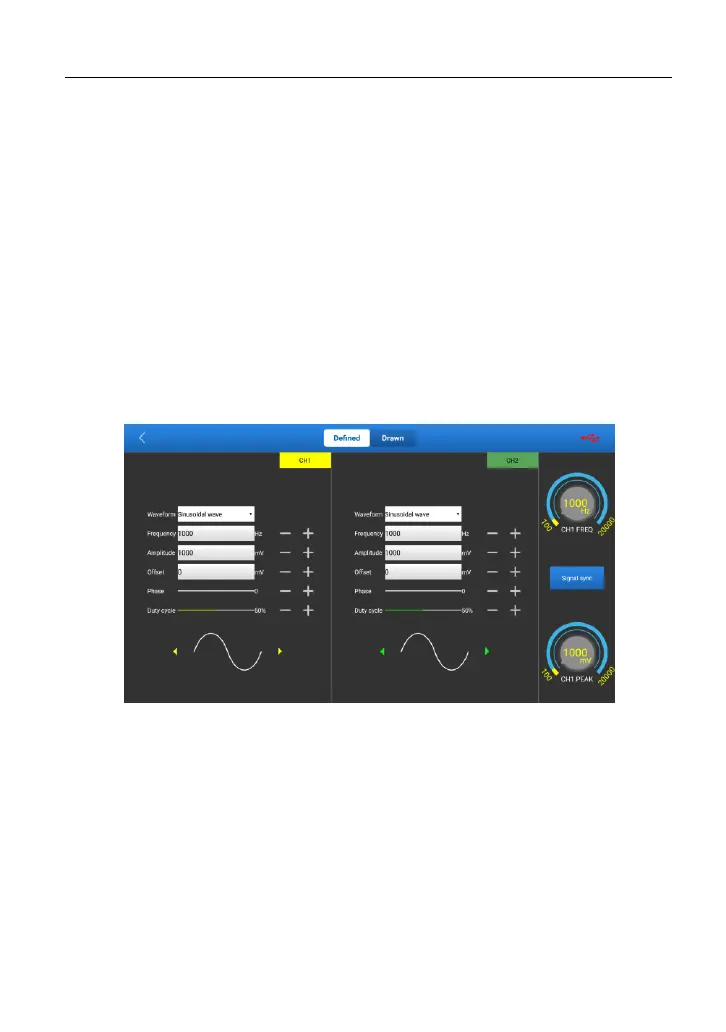

Tap Defined/Drawn on the sensor module function main page to access the
following page.
The output channels corresponding to customization are CH1 and CH2.
The parameters can be set as follows:
Waveform: There are 9 waveforms to choose. Forward sine wave, reverse
sine wave, forward square wave, reverse square wave, medium voltage
straight line, high voltage straight line, low voltage straight line, triangle wave,
and trapezoidal wave.
Frequency: set the frequency of the selected waveform.
Amplitude: set the amplitude of the selected waveform.
Offset: set the offset of the selected waveform.
