LAUNCH X-431 Module S2 User Manual
32

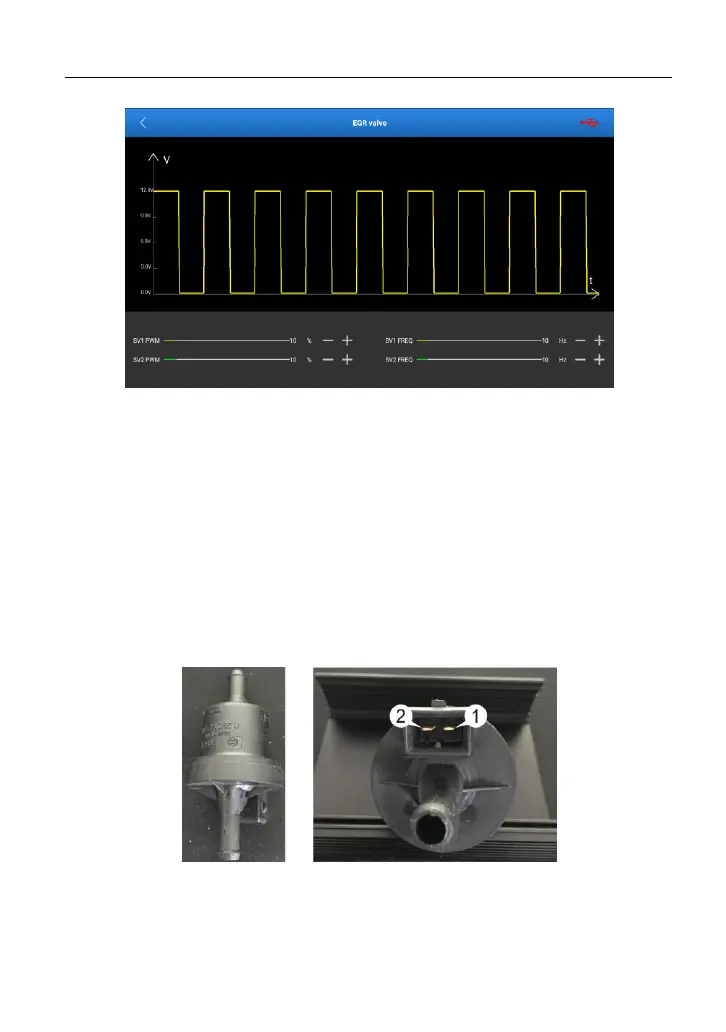

Output ports: solenoid 1 (SV1) and solenoid 2 (SV2)
Output type: adjustable duty cycle square wave
Drag the PWM sliders to change the output duty cycles of SV1 and SV1. Drag
the FREQ sliders to change the output frequencies of SV1 and SV2.
4.2.4 Carbon can solenoid valve
Wiring mode:
Line 1: SV1\2 +
Line 2: SV1\2 -
*Remarks: This is a coil actuator.
Operation method:
