LAUNCH

X-431 Module S2 User Manual

motor. The stepper motor can react only by tapping the Reverse or Positive button.

(The so-called forward and reverse directions are not fixed, and are determined by the

hardware connection.)

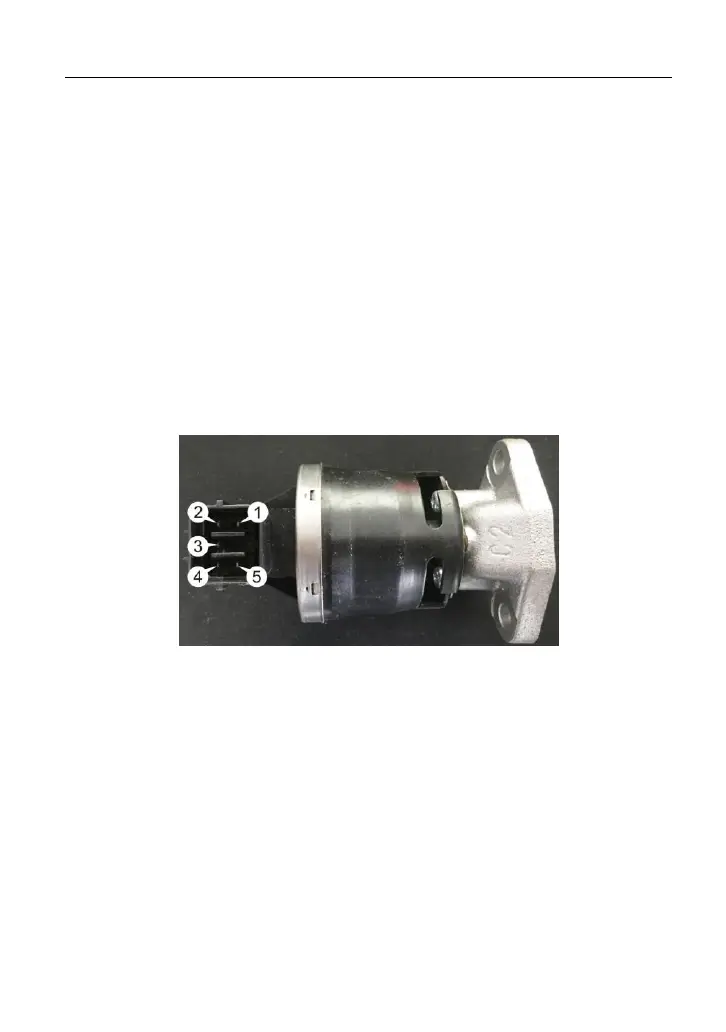

4.2.3 EGR Valve

Wiring mode:

Line 1: SV1\2 +

Line 2: Not connected

Line 3: Not connected

Line 4: Not connected

Line 5: SV1\2 -

*Remarks: This is a coil actuator.

Operation method:

www.diagtools.eu, Pernavas 43A, Riga, Latvia, LV-1009, +37129416069, info@diagtools.eu
