Launch X-431 - Turbocharged Solenoid Valve

LAUNCH X-431 Module S2 User Manual
33

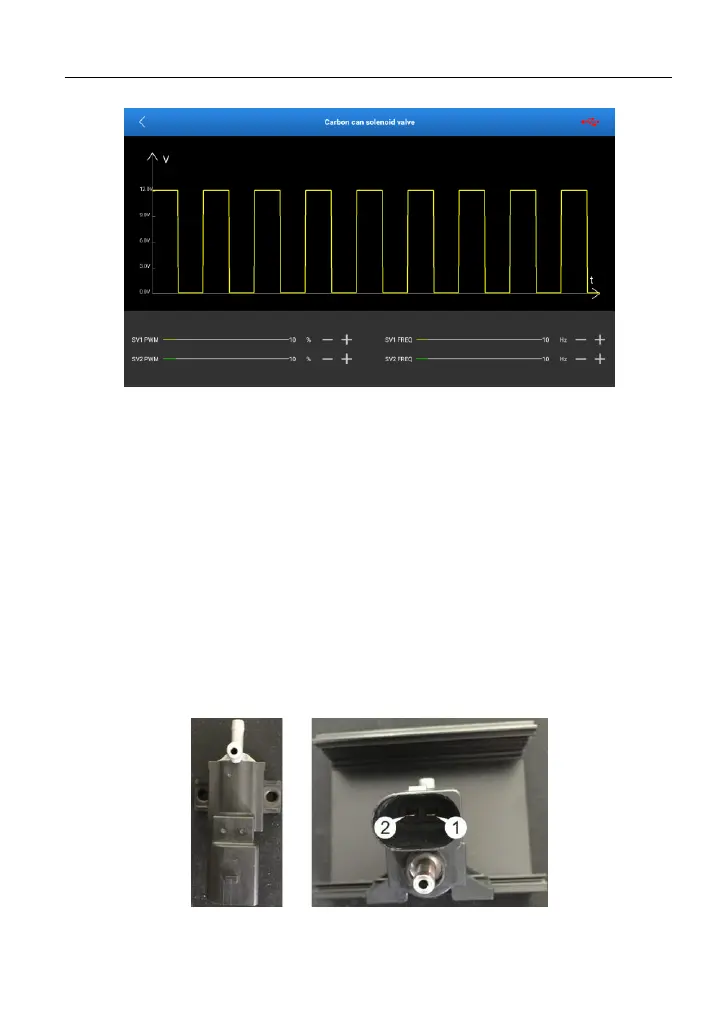

Output ports: solenoid 1 (SV1) and solenoid 2 (SV2)
Output type: adjustable duty cycle square wave
Drag the SV1 PWM slider to change the output duty cycle of SV1. Drag the SV1
FREQ slider to change the output frequency of SV1.
Drag the SV2 PWM slider to change the output duty cycle of SV2. Drag the SV2
FREQ slider to change the output frequency of SV2.
4.2.5 Turbocharged solenoid valve
Wiring mode:
Line 1: SV1\2 +
Line 2: SV1\2 -
*Remarks: This is a coil actuator.
Operation method:
