LAUNCH X-431 Module S2 User Manual
6
1.4 Packing List
Sensor module accessories include sensor test cables, probes, etc.
Due to different product configurations, the accessories included in the product
may be different from those listed in this manual. For the specific accessories
included in the product, refer to the packing list attached to the product.

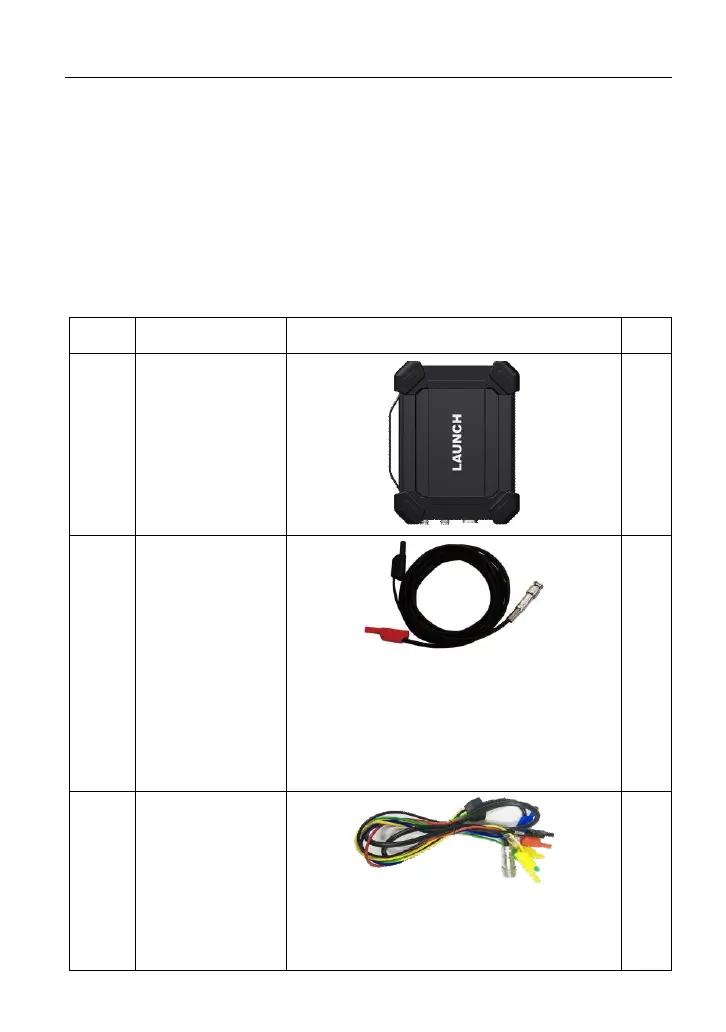

The following is the appearance diagram of each test line and related
accessories.
No.
Name
Description
Qt.
1
Sensor module
1
2
HT30 test leads
A kind of special line used to connect sensors
and test various types of signals. Wide-range
probes, clamps, and hooks can be inserted
into the 4mm connector at the end of the
line.
2
3
7-pin interface
adapter cable
Used to connect the sensor module and
actuator to test the actuator. When testing
the actuator, do connect the sensor module
1
