Phase: set the phase of the selected waveform.
Duty cycle: set the duty cycle of the selected waveform.
Signal sync can cause CH1 and CH2 to output signals at the same time.
5.2 Hand-drawn
The hand-drawing function facilitates users to simulate special waveforms or
fault waves. Users only need to draw the shape of the simulated waveform in the
upper drawing area, and set the waveform, frequency, and amplitude in the
parameter setting area.

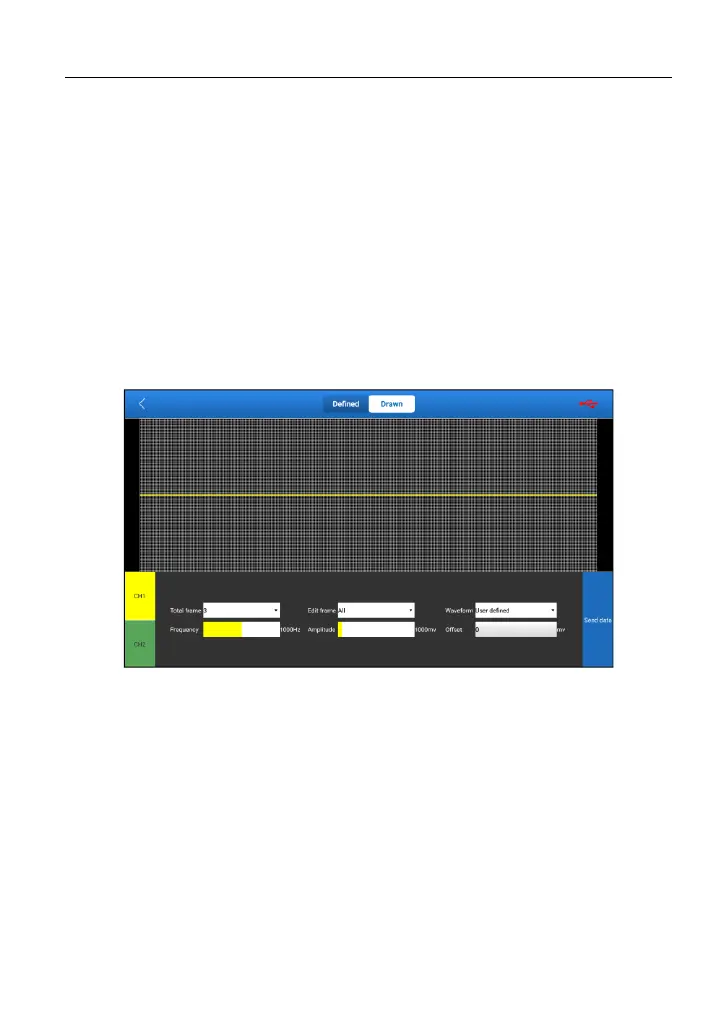

Tap Drawn to switch to the drawing mode.
The corresponding output channels are CH1 and CH2.
The upper area on the page is the drawing area. Select CH1 and CH2 manually.
The parameters can be set as follows:
Total frame: 1-3 (optional). Indicate the total number of output points.
Generally, one waveform is composed of 100 points. The values 1-3 indicate
that you can select 100, 200, or 300 points to form a waveform.
Edit frame: You can edit a single frame or edit all.
Waveform: You can select a preset waveform and place it in the hand-
drawing area.
Frequency: Frequency of a single frame (for 3-frame output, the total
frequency is the set frequency/3).
