LAUNCH

X-431 Module S2 User Manual

Timing Waveform

The function is used to match the timing waveform (crankshaft + camshaft) of

the engine.

Refer to Chapter 3.1 for connection methods.

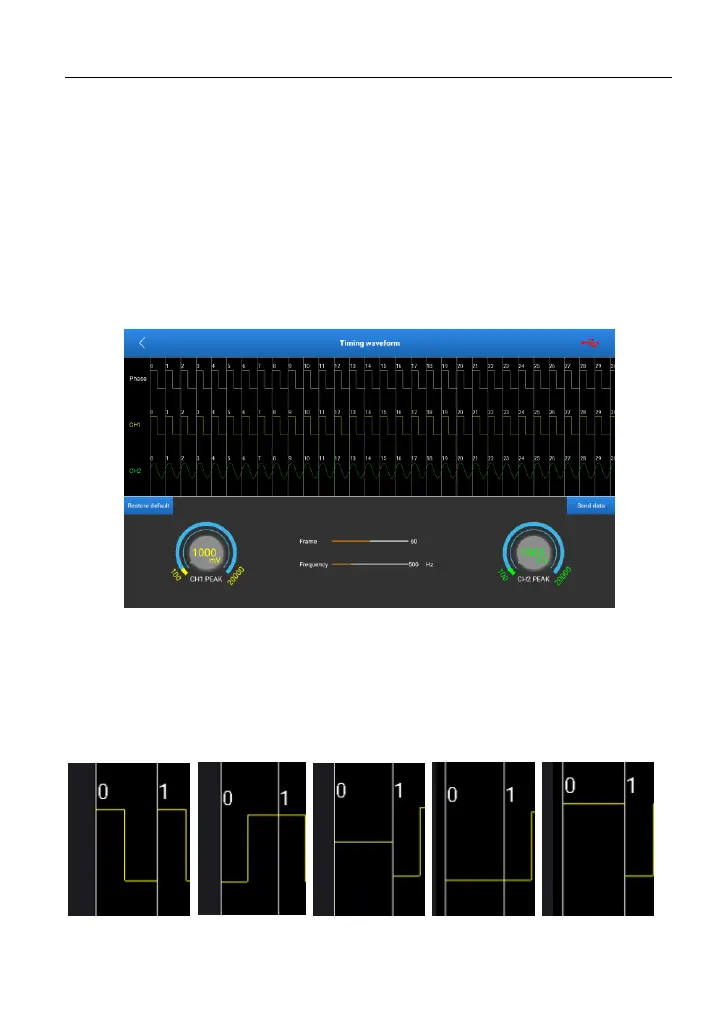

Tap Timing Waveform on the sensor module function main page to access the

following page.

The corresponding output channels are CH1 and CH2.

CH1 simulates camshaft signals.

CH2 simulates crankshaft signals.

CH1 waveforms in each cycle are adjustable, and the options are as follows

(take cycle 0 as an example).

As shown, five waveforms can be selected in cycle 0. They are forward square

www.diagtools.eu, Pernavas 43A, Riga, Latvia, LV-1009, +37129416069, info@diagtools.eu
