Launch X-431 - How to Operate; DC Sensor

LAUNCH X-431 Module S2 User Manual
13
3.2 How to Operate
There are three types of sensors: DC, AC and frequency modulation PFM.
3.2.1 DC Sensor

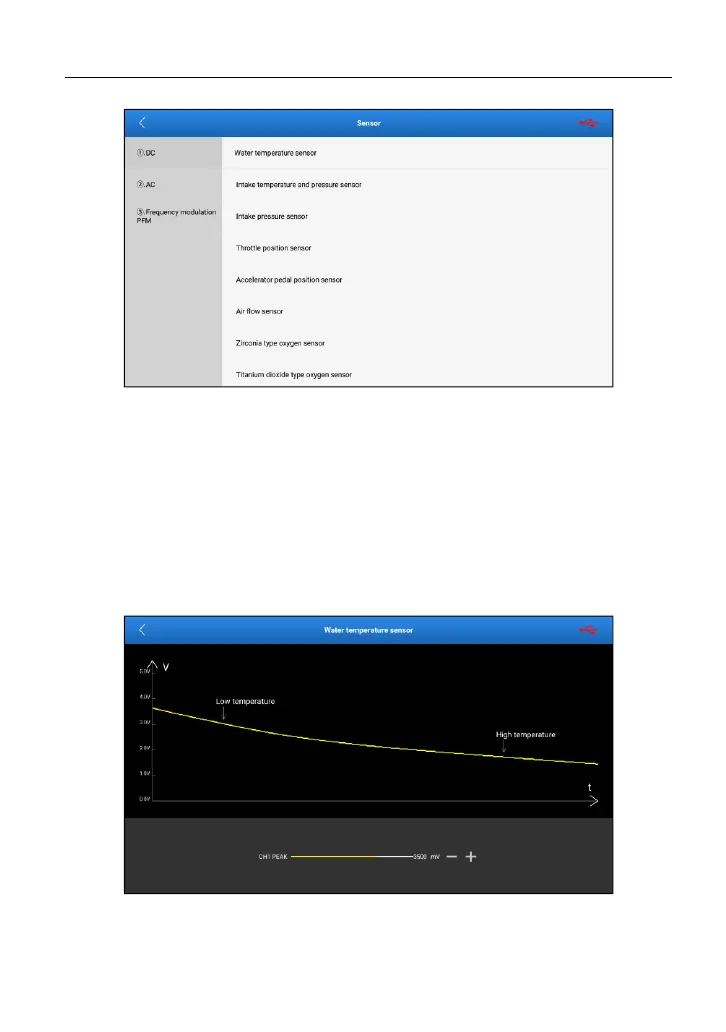

*Remarks: The following waveform is a sample waveform, not the actual output
waveform. Users can refer to it to change the voltage to achieve the function.
1) Water temperature sensor
Output port: CH1
Output type: DC voltage
