LAUNCH
X-431 Module S2 User Manual
43
wave, reverse square wave, medium straight line level, low straight line level,
and high straight line level.
CH2 waveforms in each cycle are adjustable, and the options are as follows
(take cycle 0 as an example).

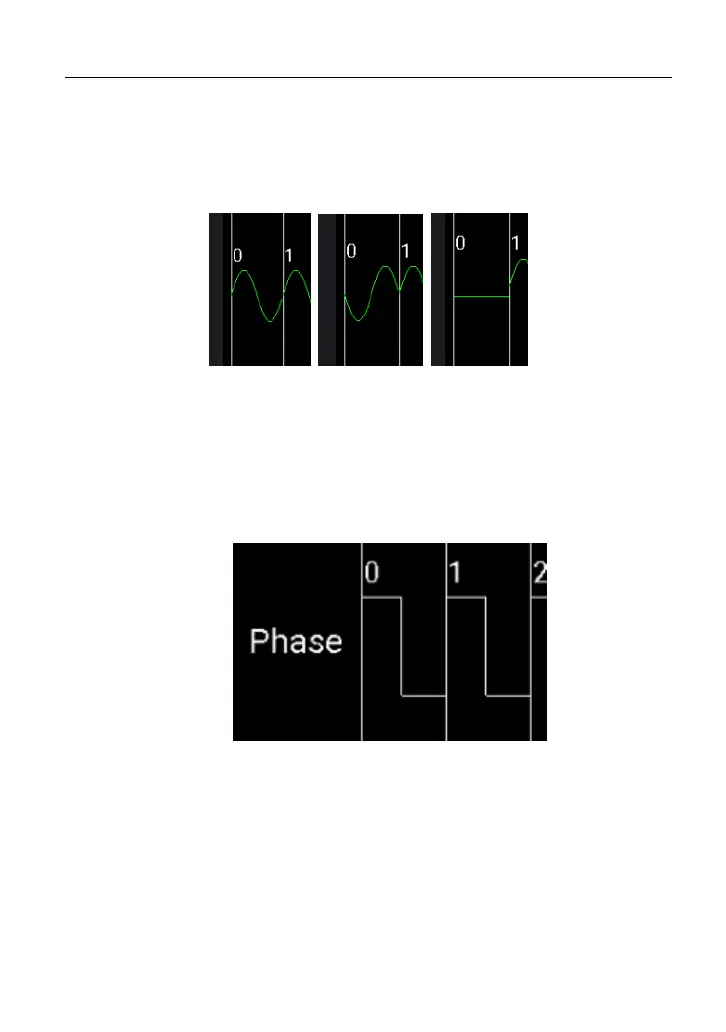

As shown, three waveforms can be selected in cycle 0. They are forward sine
wave, reverse sine wave, and medium straight line level.
The specific waveform editing of CH1 and CH2 should be determined according
to different engines.
Frame: Number of editing waveforms that are output at a time (it is cyclic output
for 50 frames, 50 editing waveforms are output at a time.)
Indicate that the editing waveforms of CH1 and CH2 in the same cycle are in the
same phase.
Frequency: Frequencies of CH1 and CH2 will be changed at the same time.
Amplitude: Amplitudes of CH1 and CH2 are separately set.
