LAUNCH X-431 Module S2 User Manual
23

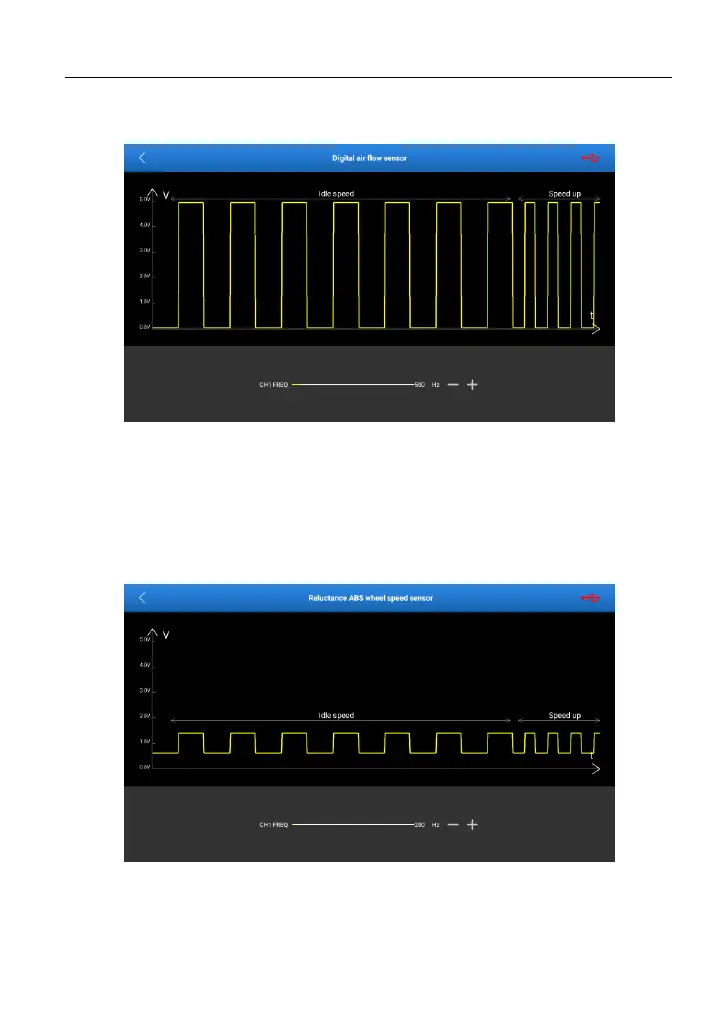

1) Digital air flow sensor
Output channel: CH1
Output type: square wave
Drag the yellow slider to change the output frequency of CH1 to simulate the
acceleration and deceleration status.
2) Reluctance ABS wheel speed sensor
Output channel: CH1
Output type: square wave
Drag the yellow slider to change the output frequency of CH1 to simulate the
