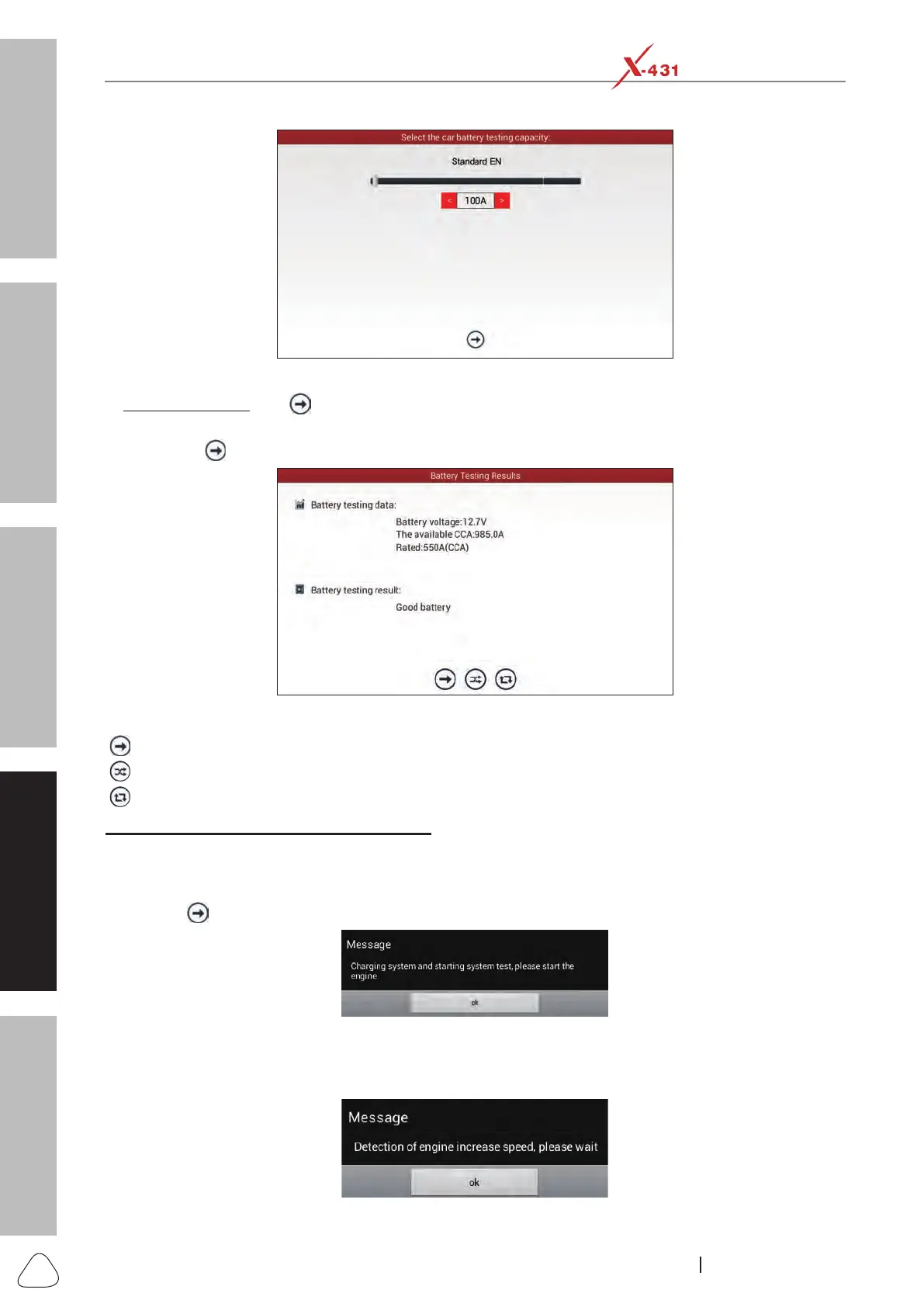

Fig. Battery-2
If JIS is selected, tap
, the system will enter Select testing capacity screen. Users can select
corresponding standard capacity value according to battery model marked on battery.
7. Tap or click
and the testing result will appear on the following screen.
Fig. Battery-3
[
]: Tap or click it to perform the charging system and starting system test.
[
]: Tap or click to test it again.
[
]: Tap or click it to reset the test.
2. Charging system and starting system test
While performing this test, the battery’s charging voltage value and starting voltage can be obtained in case
of engine starting and accelerating. Based on the data, the system will judge whether battery’s charging and
actuation status is normal or not.
Tap or click
in Fig. Battery-3, a dialog box will pop up.
Fig. Battery-4
After detecting engine starting, follow the instructions on the screen to increase the speed.
The system begins to receive test data information after acceleration was detected.
Fig. Battery-5
