LeCroy WaveRunner 6Zi - Horizontal Front Panel Controls; Vertical Front Panel Controls

WaveRunner 6 Zi Oscilloscopes
23
WR6Zi-GSM-E

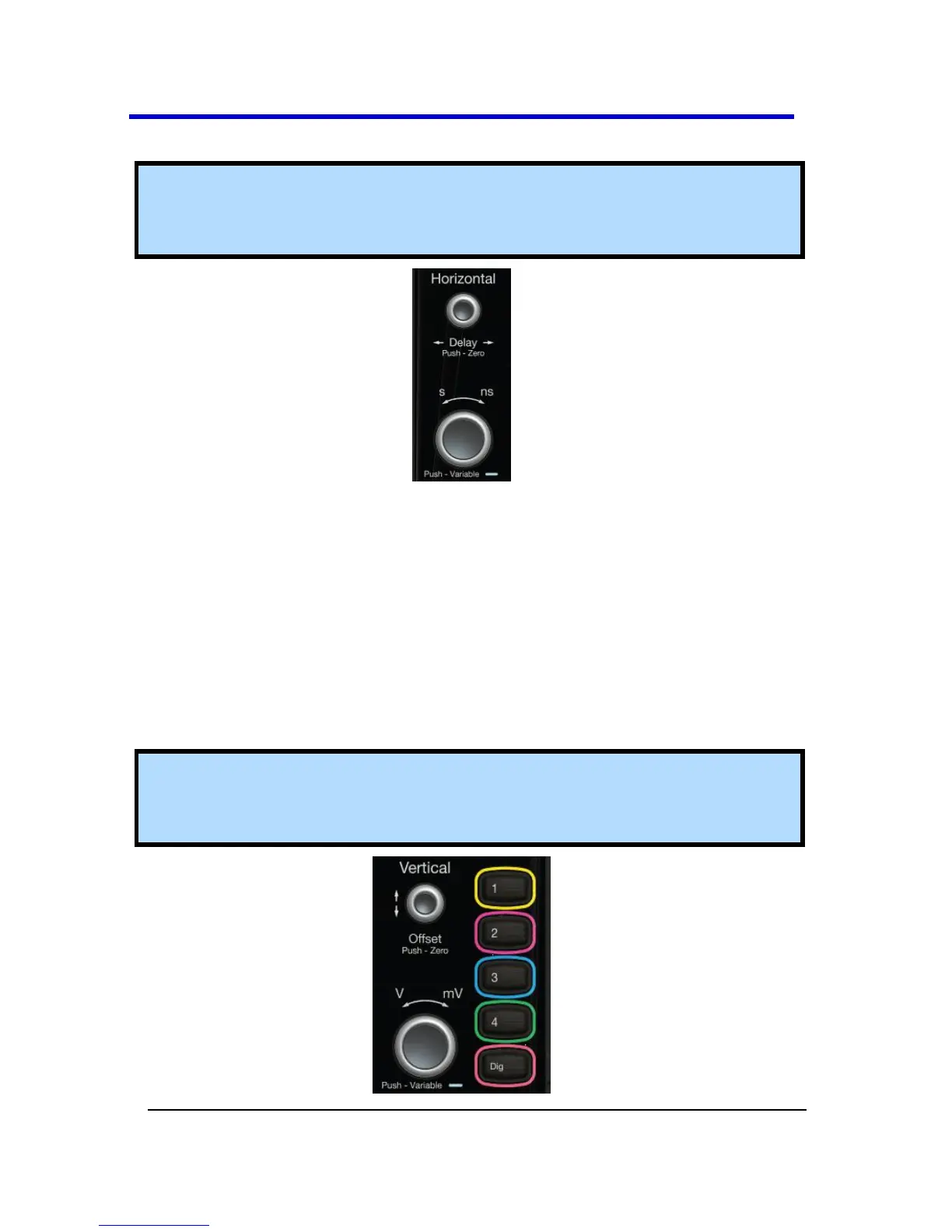

Horizontal Front Panel Controls
Note: Horizontal front panel controls can be applied to signals, Math,
Zoom, or Memory traces. See Math, Zoom, and Memory Indicators
and Controls (on page 24) for more information.
 Delay - Press to toggle between a zero horizontal delay value and
the previous horizontal delay value. Turn to change the horizontal
delay value.
 Time/Div - Turn to set the time/division of the oscilloscope
timebase (acquisition system). When using this Horizontal control
on a Math, Zoom, or Memory trace, you can press this button to
toggle between fixed and variable adjustments. Turn the knob to
change the value.
Vertical Front Panel Controls
Note: Vertical front panel controls can be applied to signals, Math,
Zoom, or Memory traces. See Math, Zoom, and Memory Indicators
and Controls (on page 24) for more information.
