The WavePilot Control Area and The SuperKnob
THE WAVEPILOT CONTROL AREA AND THE SUPERKNOB OVERVIEW
The WavePilot Control Area contains buttons that correspond to specific
functions.
These function buttons are used together with the SuperKnob to provide
increased instrument control at your fingertips.
The SuperKnob is a joystick-like knob in the center of the WavePilot
Control Area used to make selections or provide specific values.

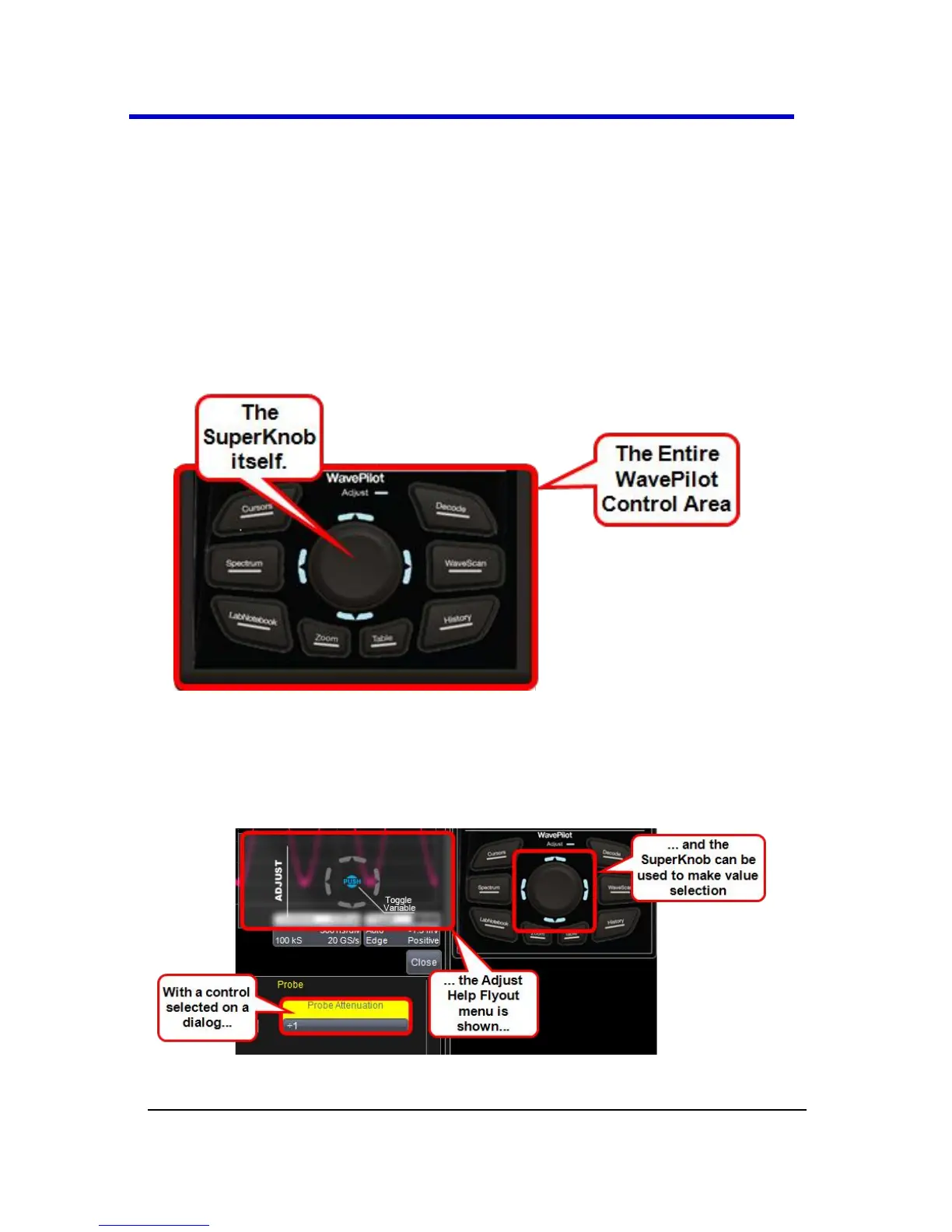

The SuperKnob shown on the WavePilot Control Area.
SuperKnob Field Control and the Adjust Help Flyout Menu
Whenever you access a non-text entry or file browsing control on a
dialog, the Adjust Help Flyout menu is shown.
The Probe Attenuation control value being changed using the SuperKnob.
