You can combine sequence mode with an advanced trigger to
isolate a rare event, capture all instances over hours or days, and
view/analyze each afterwards.
You can use Sequence mode in remote operation to take full
advantage of the instrument's high data-transfer capability.
In Sequence mode, the complete waveform consists of a number of
fixed-size segments acquired in single-shot mode (see the instrument
specifications for the limits). The oscilloscope uses the sequence
timebase setting to determine the capture duration of each segment as
10 x time/div. With this setting, the oscilloscope uses the desired number
of segments, maximum segment length, and total available memory to
determine the actual number of samples or segments, and time or
points.

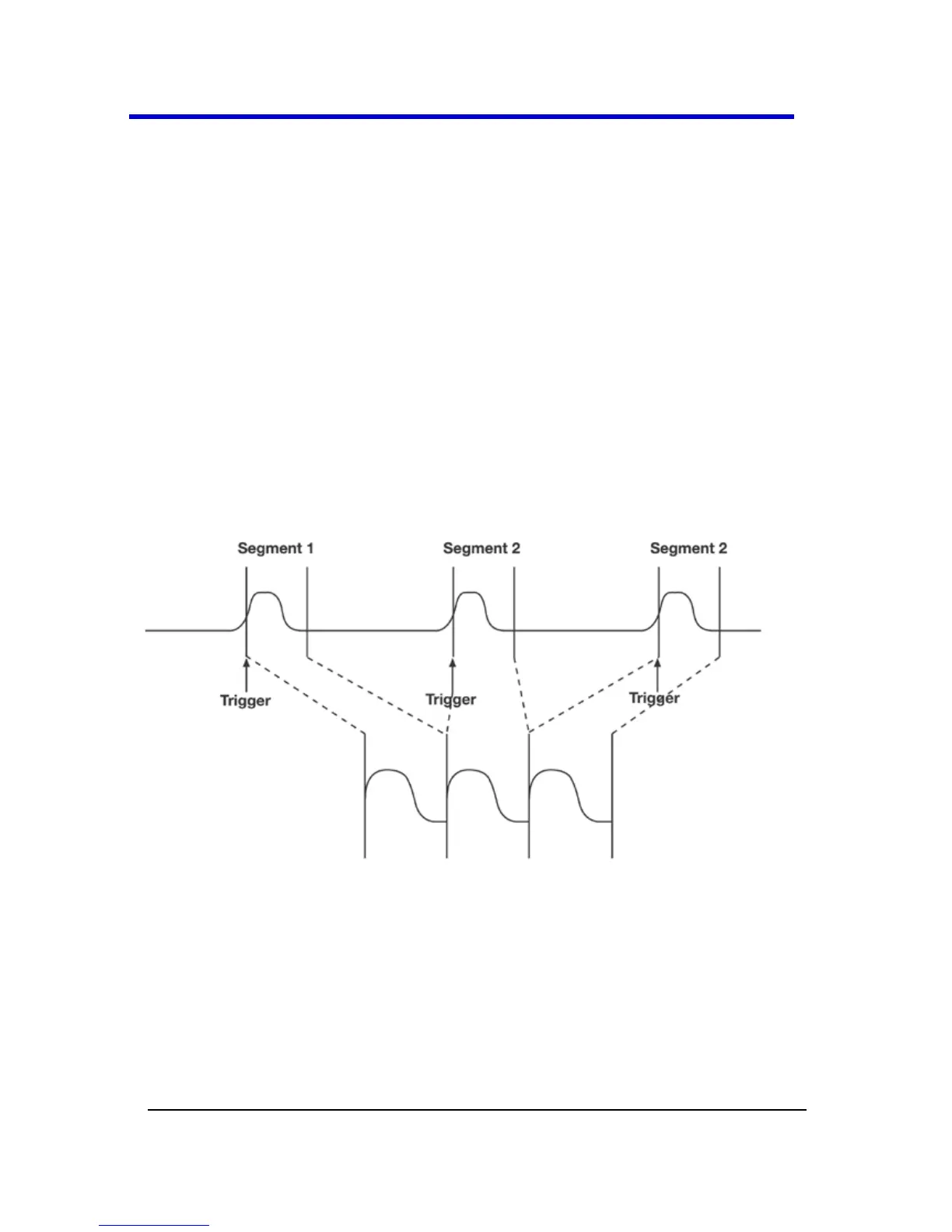

How the instrument captures segments
