LeeBoy 7000 - CONTROLS AND DESCRIPTIONS

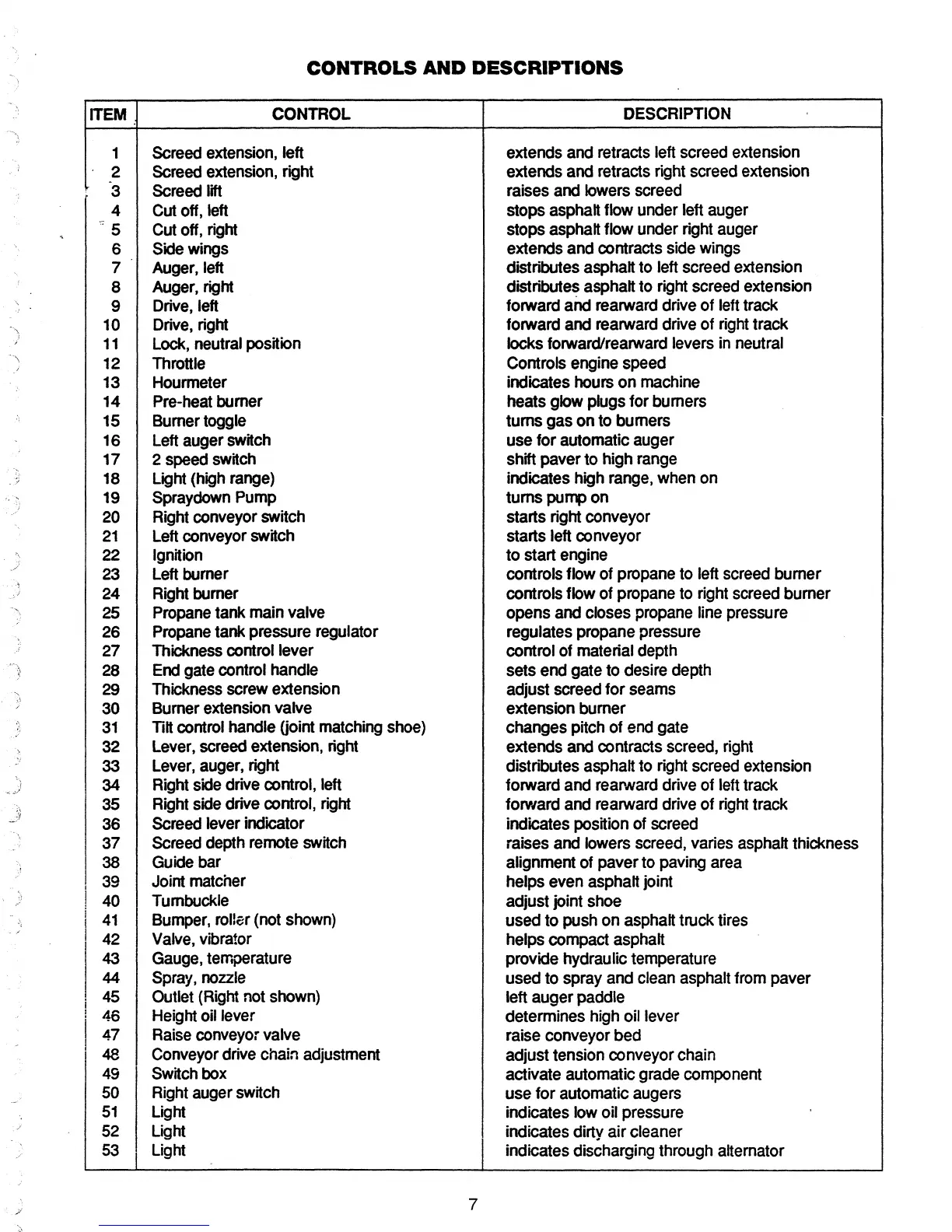

CONTROLS AND DESCRIPTIONS
ITEM
CONTROL
DESCRIPTION
1
SCreed extension, left
extends and retracts left screed extension
2
SCreed extension, right
extends and retracts right
screed extension
3
Screed lift
raisesandlowers
screed
4 Cutoff, left
stopsasphalt flow underleft auger
".:: 5
Cutoff, right
stopsasphaltflow underrightauger
6
Sidewings
extends andcontracts sidewings
7 Auger, left
distributes asphaltto left
screed extension
8
Auger, right
distributes asphaltto right screed extension
9
Drive, left
forward
and rearward driveof lefttrack
10
Drive, right
forwardand
rearward driveof righttrack
11
Lock, neutral position
locksforward/rearward
levers in neutral
12 Throttle
Controls
engine speed
13 Hourmeter
indicates hourson machine
14
Pre-heat burner
heatsglowplugsfor burners
15 Burner toggle
tums gas on to bumers
16 Leftauger switch
use for automatic auger
17 2 speed switch
shiftpaverto high range
18
Light(high range)
indicates high range, whenon
19
Spraydown Pump
tumspumpon
20
Right conveyor switch startsrightconveyor
21
Left conveyor switch startsleft conveyor
22 Ignition
to start engine
23
Leftburner
controlsflow of
propane to left screed burner
24 Right burner
controlsflow of
propane to right screed bumer
25
Propane tank mainvalve opensandcloses propane line pressure
26
Propane tankpressure regulator
regulates propane
pressure
27
Thickness control lever
controlof material depth
28
Endgatecontrol handle
sets end gateto desiredepth
29
Thickness screwextension adjust screed for seams
30
Burner extension valve
extension burner
31
Tin control handle (joint matching shoe)
changespitchof endgate
32
lever, screed extension, right
extendsandcontracts
screed, right
33
Lever, auger, right
distributes asphaltto right
screed extension
34
Right sidedrivecontrol, left
forwardand
rearward driveof lefttrack
35
Right sidedrivecontrol, right
torwardand rearward driveof right track
36
Screed leverindicator
indicatesposition of
screed
37
SCreed depth remote switch
raisesand lowers screed, varies asphalt thickness
38
Guide bar
alignment of paverto pavingarea
I
39
Joint matcher
helpseven asphaltjoint
I
40
Turnbuckle
adjustjoint shoe
i
41
Bumper, roller(not shown)
usedto pushon asphalttrucktires
I
42
Valve, vibrator
helpscompact asphalt
43
Gauge, temperature
providehydraulic temperature
44 Spray, nozzle
usedto sprayand clean asphalt frompaver
i
45
Outlet (Right not shown)
left augerpaddle
I
46
Height oil lever
determines highoil lever
47 Raise conveyor valve
raiseconveyor bed
48
Conveyor drivechain adjustment
adjusttensionconveyorchain
49 Switch box
activateautomatic grade component
50 Right auger switch
use for automatic augers
51
Light
indicateslowoil
pressure
52 Light
indicatesdirtyair cleaner
53
Light
indicatesdischarging through alternator
7
