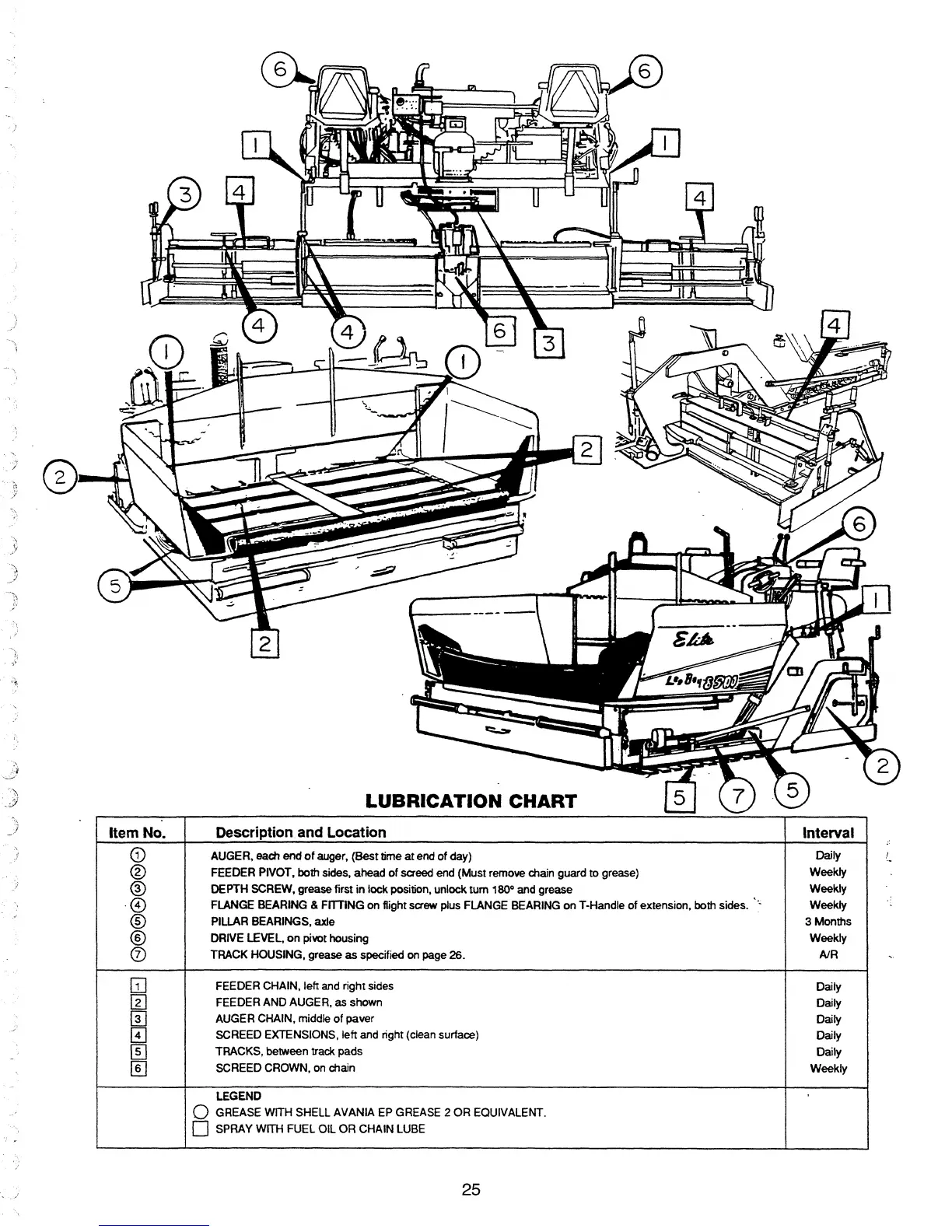

LUBRICATION CHART
Description.and Location
AUGER, each end
of
auger,
(Best
time at end of day)
FEEDER
PIVOT,both sides, ahead of saeed end (Must remove chainguard to grease)
DEPTH SCREW,
greasefirst in lock position, unlock
tum
180° and grease
FLANGE
BEARING
&
FiniNG
on flight
saew
plus FLANGE
BEARING
on T-Handle of extension, both sides.
PILLAR
BEARINGS,
axle
DRIVELEVEL,on pivot housing
TRACK HOUSING, grease
as specifiedon page26.
FEEDER
CHAIN, left andright sides
FEEDER
AND
AUGER,
as shown
AUGER CHAIN, middleof paver
SCREED EXTENSIONS, left and right (clean surface)
TRACKS, between track
pads
SCREED CROWN, on chain
LEGEND
o GREASE WITHSHELLAVANIA EPGREASE 2 OR
EQUIVALENT.
o SPRAY WITH
FUEL
OIL OR CHAIN LUBE
25
Interval
Daily
Weekly
Weekly
Weekly
3
Months
Weekly
AIR
Daily
Daily
Daily
Daily
Daily
Weekly
