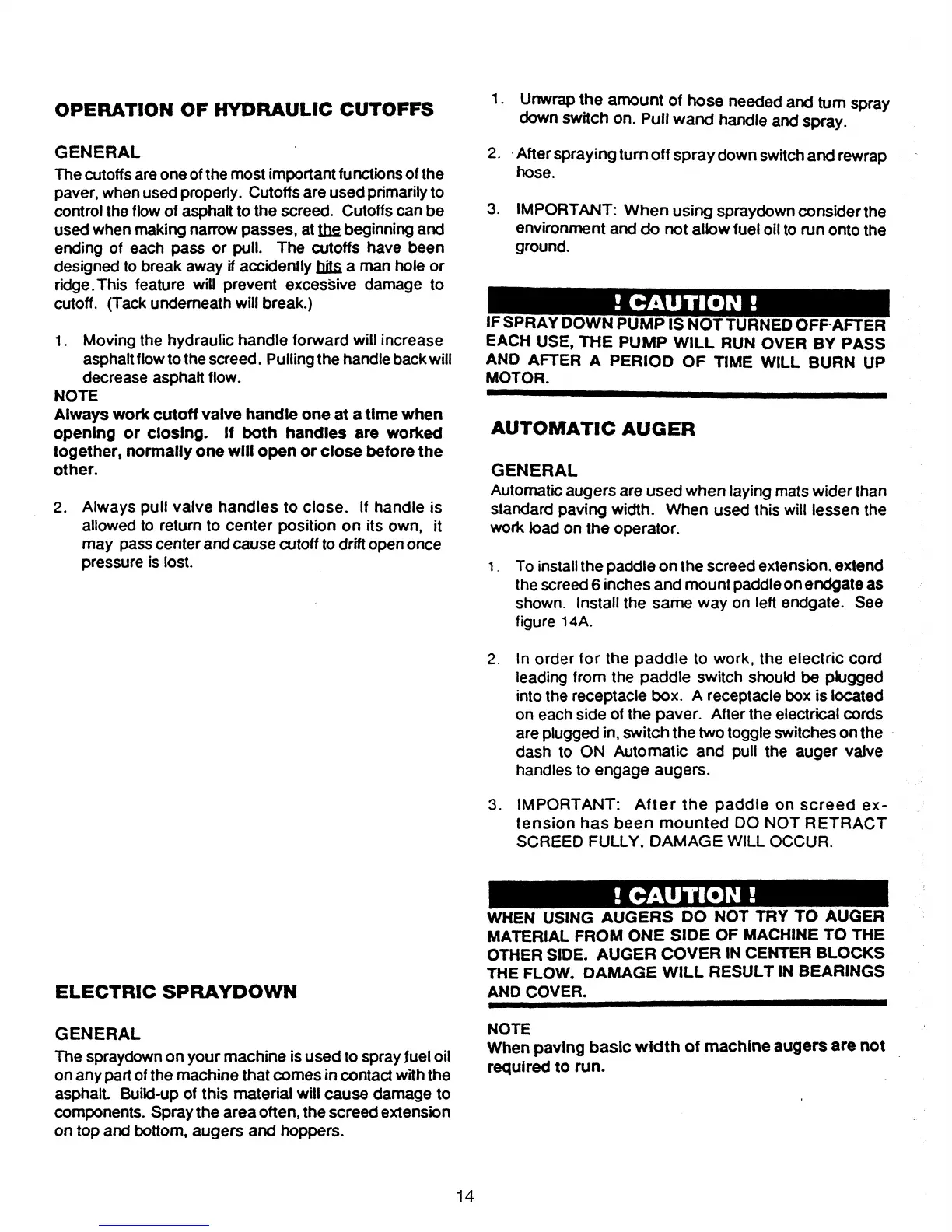

OPERATION
OF
HYDRAULIC
CUTOFFS
GENERAL
The cutoffs are
one
of the
most
importantfunctions of the
paver. when used properly. Cutoffs are
used
primarily to
control the flow of asphalt to
the
screed. Cutoffs
can
be
used
when
making narrow passes, at Ulilbeginning
and
ending of each pass
or
pull. The cutoffs have been
designed to
break
away if accidently
bitS
a man hole
or
ridge.This feature will prevent excessive damage to
cutoff. (Tack underneath will break.)
1.
Moving
the
hydraulic
handle
forward
will
increase
asphaltflow to the screed. Pulling
the
handlebackwill
decrease asphalt flow.
NOTE
Always
work
cutoff
valve
handle
one
at a
time
when
opening
or
closing. If
both
handles are
worked
together,
normallyone will open
or
close before
the
other.
2.
Always
pull
valve
handles
to
close.
If
handle
is
allowed to return to
center
position
on
its own, it
may
pass
center
and
cause cutoff to drift openonce
pressure is lost.
ELECTRIC
SPRAYDOWN
GENERAL
The
spraydown
on
your
machine
is
used
to sprayfuel oil
on
any
part of
the
machine
that
comes
in contact
with
the
asphalt. Build-up of
this
material
will
cause
damage
to
components.
Spray
the
area
often,
the
screed
extension
on
top
and
bottom,
augers
and
hoppers.
14
1.
Unwrap
the
amount
of
hose
needed
and
tum
spray
down
switch
on.
Pull
wand
handle
and
spray.
2. .
After
spraying
turn
off
spray
down
switch
and
rewrap
hose.
3. IMPORTANT:
When
using
spraydown
consider
the
environment
and
do
not
allow
fuel oil to
run
onto
the
ground.
!
CAUTION!
IF SPRAY
DOWN
PUMP
IS
NOT
TURNED
OFF'AFTER
EACH USE,
THE
PUMP
WILL
RUN OVER BY PASS
AND AFTER A PERIOD
OF
TIME WILL BURN UP
MOTOR.
AUTOMATIC
AUGER
GENERAL
Automatic
augers
are
used
when
laying mats
wider
than
standard
paving
width.
When
used
this will
lessen
the
work
load
on
the
operator.
1. To install
the
paddle
on
the
screed extension, extend
the screed 6
inches
and
mount
paddleon
endgate
as
shown. Install the same
way
on left endgate. See
figure
14A.
2. In order
for
the
paddle
to
work,
the
electric
cord
leading
from
the paddle switch should be
plugged
into the receptacle box. A receptacle box is located
on each
side
of
the
paver.
After
the
electrical
cords
are plugged in,
switch
the
two
toggle switches
on
the
.
dash
to
ON
Automatic
and
pull the auger valve
handles to
engage
augers.
3.
IMPORTANT:
After
the
paddle
on
screed
ex-
tension
has
been
mounted
00
NOT
RETRACT
SCREED
FULLY.
DAMAGE
WILL
OCCUR.
!
CAUTION!
WHEN
USING
AUGERS
DO
NOT
TRY
TO
AUGER
MATERIAL
FROM
ONE
SIDE
OF
MACHINE
TO
THE
OTHER
SIDE.
AUGER
COVER
IN
CENTER
BLOCKS
THE
FLOW.
DAMAGE
WILL
RESULT
IN
BEARINGS
AND
COVER.
NOTE
WhenpaVing basic
width
of
machine augers are
not
required to run.
