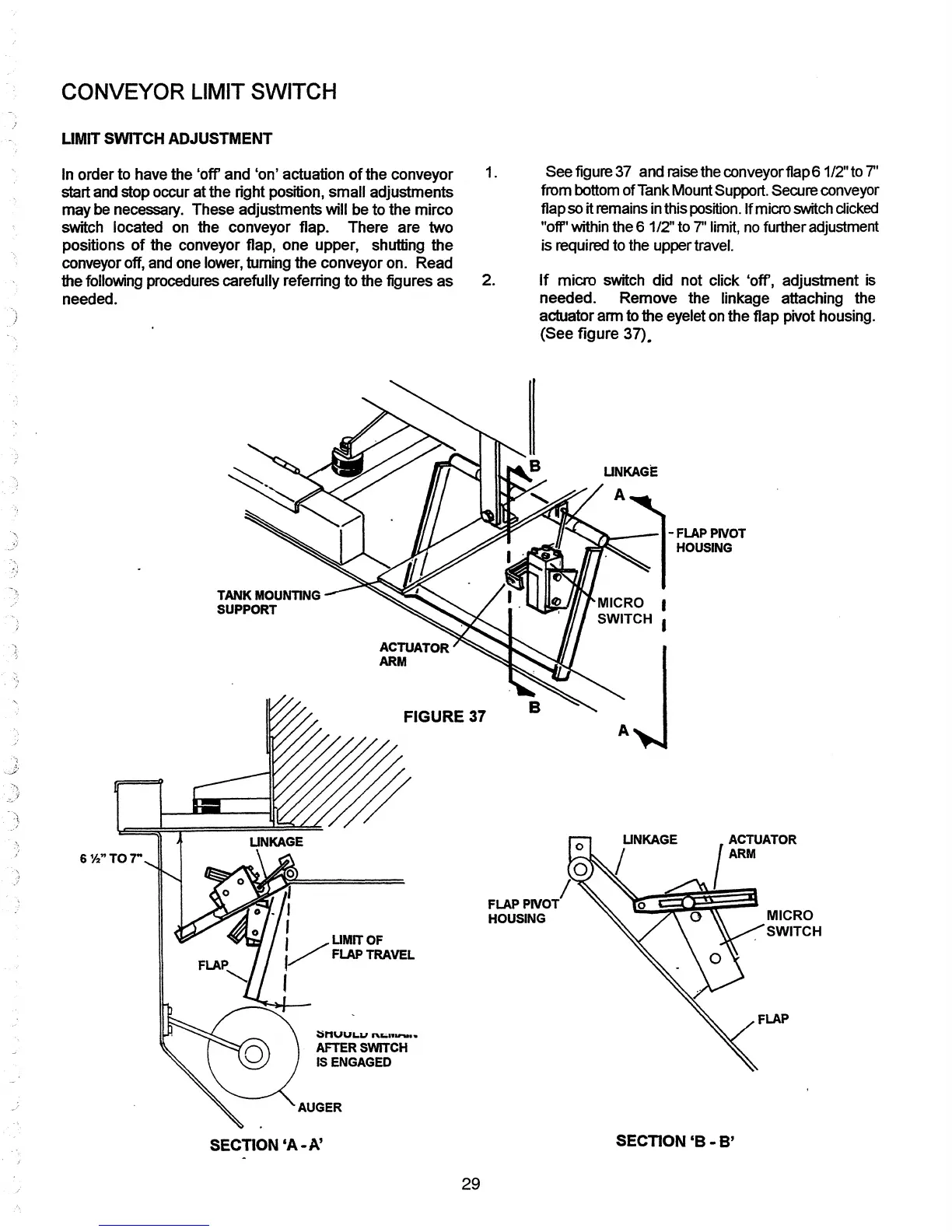

CONVEYOR LIMIT SWITCH
LIMIT SWITCH ADJUSTMENT
In order to have the 'off' and 'on' actuation of the conveyor 1.
startand stop occur at the right position, small adjustments
may be necessary. These adjustments will be to the mirco
switch located on the conveyor flap. There are two
positions of the conveyor flap, one upper, shutting the
conveyoroff, and one lower,turningthe conveyor on. Read
the following procedurescarefully referring to the figures as 2.
needed.
See figure 37 and raisetheconveyorflap6 1/2"to
7"
from bottomofTankMount
Support.
Secureconveyor
flapsoit
remains
inthis
position.
Ifmicro
switch
clicked
"off"
withinthe6 1/2"to
7"
limit,nofurther
adjustment
is required to the uppertravel.
If
micro switch did not click 'off', adjustment is
needed. Remove the linkage attaching the
actuator arm to the eyeleton the flap pivot housing.
(See figure
37).
~"UUL.U
n~I.""n
AFTERSWITCH
IS
ENGAGED
MICRO
SWITCH
-FLAP PIVOT
HOUSING
A
o
/
FLAP PIVOT
HOUSING
FIGURE
37
TANK
MOUNTING
SUPPORT
SECTION
'A-A'
SECTION
'8
-
B'
29
