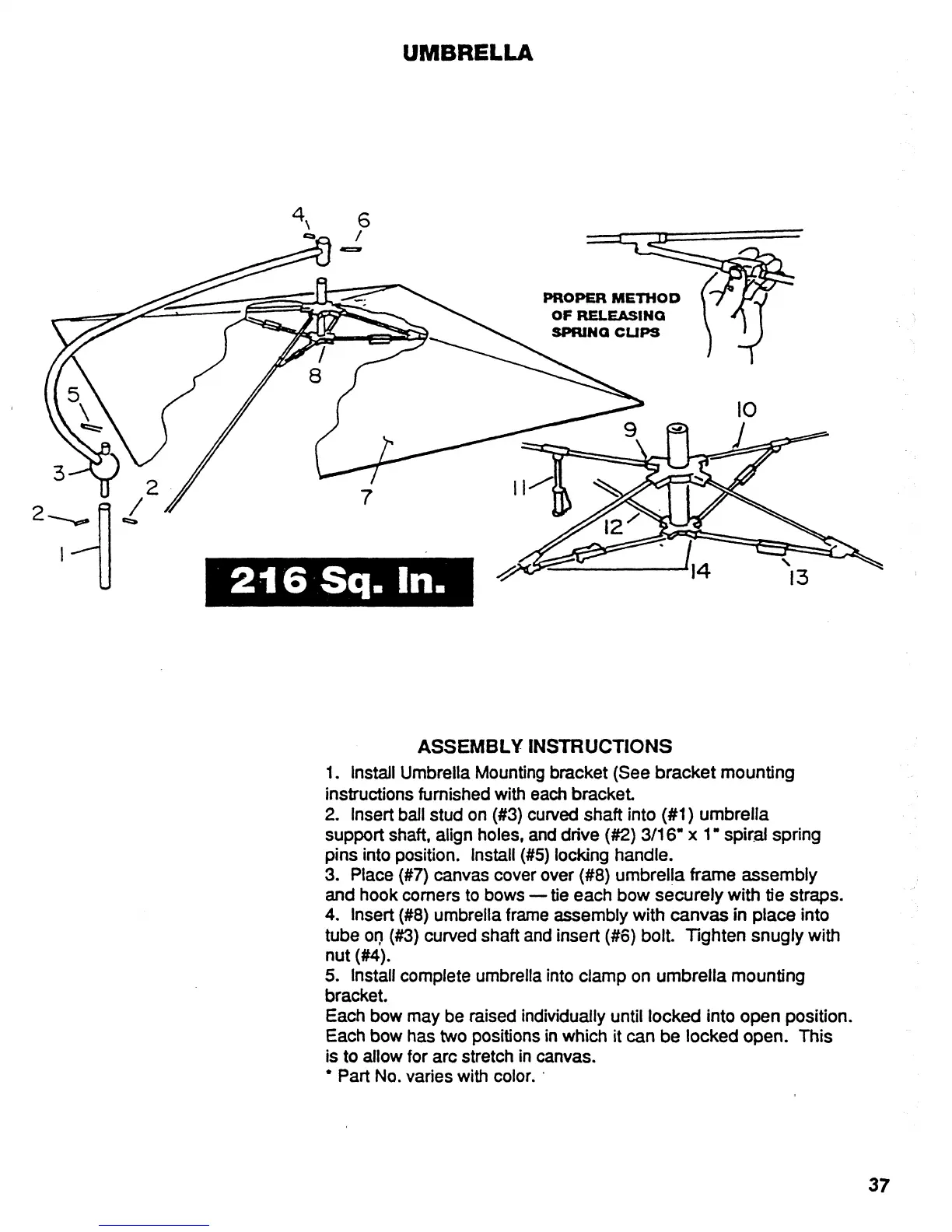

UMBRELLA
2~
6
/
.
216·Sq.
In.
PROPER
METHOD
OF
RELEASINQ
SPRING
CUPS
10
ASSEMBLY INSTRUCTIONS
1. Install Umbrella Mounting bracket (See
bracket
mounting
instructions furnished with each
bracket
2. Insert ball stud on (#3)
curved
shaft into (#1)
umbrella
support shaft, align holes, and drive (#2)
3/16-
x
1-
spiral spring
pins into position. Install (#5) locking handle.
3. Place (#7) canvas cover over (#8)
umbrella
frame
assembly
and hook comers to bows - tie each
bow
securely
with
tie straps.
4. Insert (#8) umbrella frame assembly
with
canvas
in
place
into
tube
of) (#3) curved shaft and insert (#6) bolt. Tighten snugly with
nut
(#4).
5. Install complete umbrella into clamp on umbrella mounting
bracket.
Each
bow
may be raised individually until
locked
into
open
position.
Each
bow
has two positions in which it can be
locked
open.
This
is to allow for arc stretch in canvas.
• Part No. varies with color
..
37
