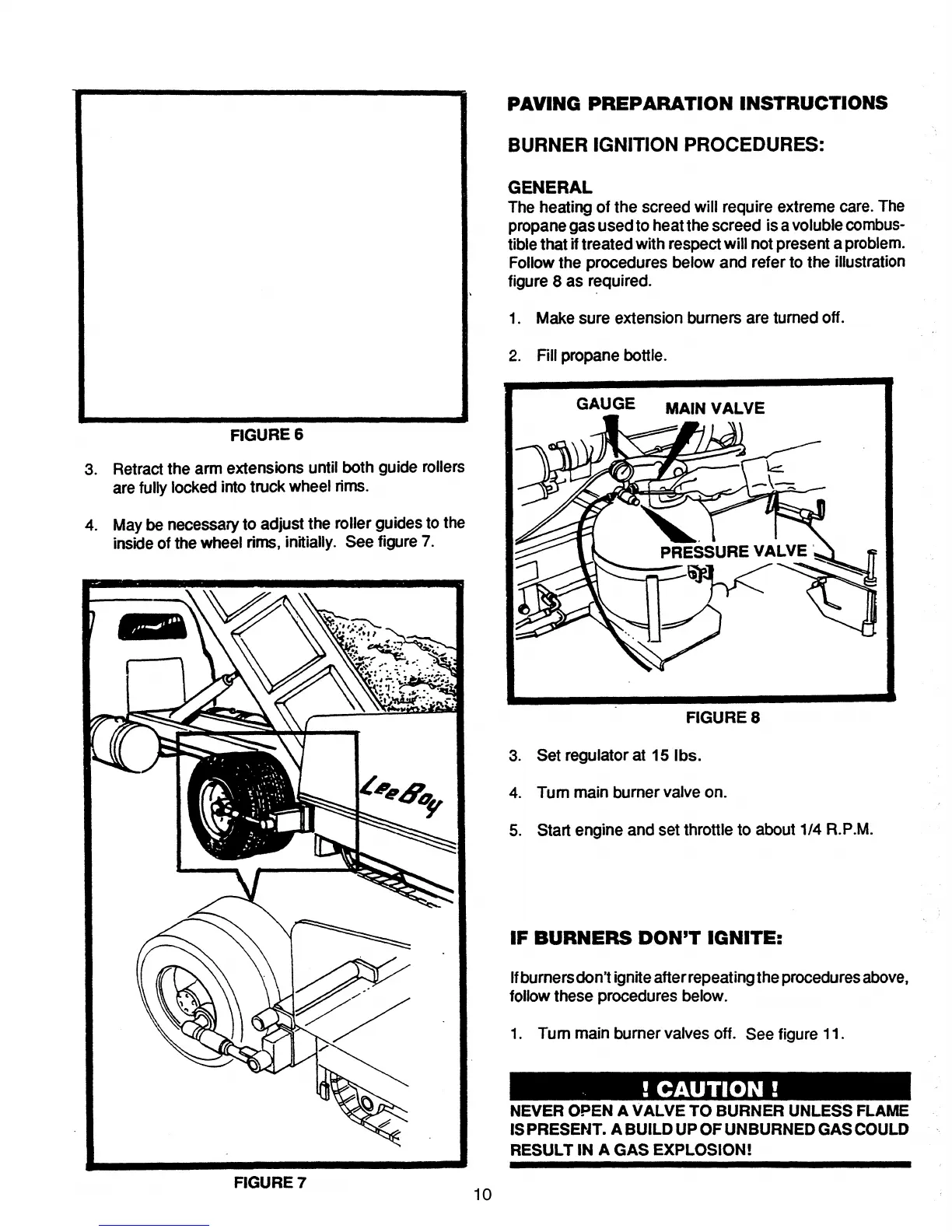

FIGURE
6
3. Retract
the
arm
extensions until
both
guide rollers
are fully locked into
truck
wheel rims.
4. May be necessary to adjust the roller guides to the
inside of the wheel rims, initially.
See
figure 7.
FIGURE 7
10
PAVING PREPARATION INSTRUCTIONS
BURNER IGNITION PROCEDURES:
GENERAL
The heating of
the
screed will require extreme care. The
propane
gas
used
to heat
the
screed
is a volublecombus-
tible
that
if
treated
with
respect
will
not
present a problem.
Follow
the
procedures
below
and
refer
to
the
illustration
figure 8 as required.
1. Make sure extension burners are turned off.
2. Fill propane bottle.
GAUGE
FIGURE 8
3.
Set
regulator at 15
Ibs.
4.
Tum
main
burner
valve on.
5. Start engine
and
set throttle to about 1/4 R.P.M.
IF BURNERS DON'T IGNITE:
Ifburners
don't
igniteafterrepeating
the
proceduresabove,
follow these procedures below.
1.
Tum
main
burner
valves off.
See
figure 11.
, !
CAUTION!
NEVER
OPEN
A
VALVE
TO
BURNER
UNLESS
FLAME
IS
PRESEtjT.
A
BUILD
UP OF
UNBURNED
GAS
COULD
RESULT IN A
GAS
EXPLOSION!
