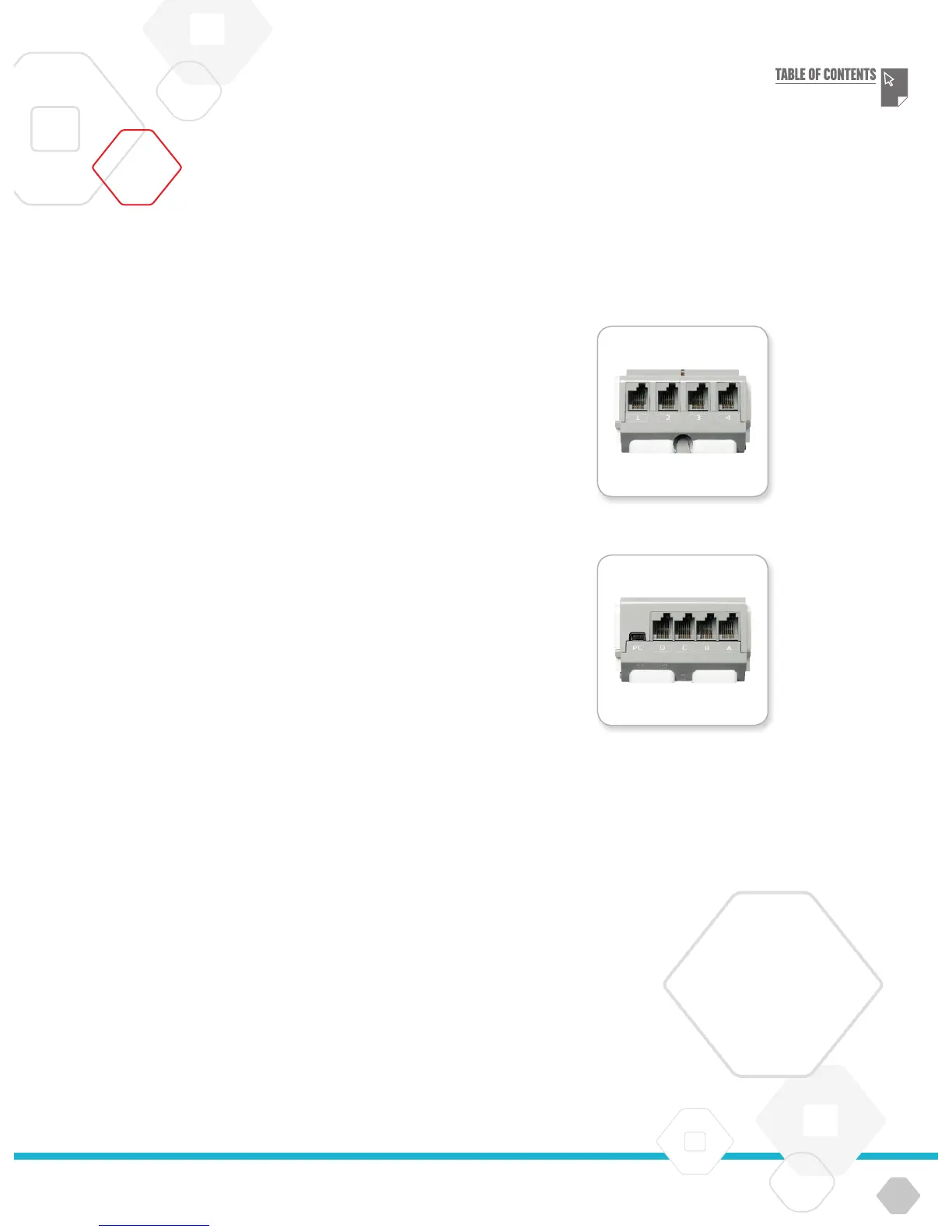

In order to function, motors and sensors must be connected to the
EV3 Brick.
You can use the flat black Connector Cables to link sensors to the
EV3 Brick using Input Ports 1, 2, 3, and 4.
If you create programs while the EV3 Brick is disconnected from
your device, the software will assign sensors to the following default
ports:
+ Port 1: Touch Sensor
+ Port 2: Gyro Sensor/Temperature Sensor
+ Port 3: Colour Sensor
+ Port 4: Ultrasonic Sensor/Infrared Sensor
Note: The Temperature Sensor is not supported in the EV3
Programming App.
If the EV3 Brick is connected to your device while you program, the
EV3 Software/Programming App will automatically identify which
port is being used for each sensor and motor.
You can use the flat black Connector Cables to link motors to the
EV3 Brick using Output Ports A, B, C, and D.
As with the sensors, if the EV3 Brick is not connected when you are
writing a program, each motor will be assigned to the following
default ports:
+ Port A: Medium Motor
+ Port B & C: Two Large Motors
+ Port D: Large Motor
If the EV3 Brick is connected to your device while you are
programming, the EV3 Software/Programming App will automatically
assign the correct port in your programs.
Connecting Sensors
Connecting Motors
NOTE:
The software
cannot distinguish between
two or more identical
sensors or motors.
