The Brick Status Light that surrounds the Brick Buttons tells you the
current status of the EV3 Brick. It can be green, orange, or red and
can pulse. Brick Status Light codes are the following:
+ Red = Startup, Updating, Shutdown
+ Red pulsing = Busy
+ Orange = Alert, Ready
+ Orange pulsing = Alert, Running
+ Green = Ready
+ Green pulsing = Running Program
You can also program the Brick Status Light to show different colours
and to pulse when different conditions are met (learn more about
using the Brick Status Light Block in the EV3 Software Help).
EV3 Brick
TECHNICAL
SPECIFICATIONS
FOR THE EV3 BRICK
+ Operating System – LINUX
+ 300 MHz ARM9 controller
+ Flash Memory – 16 MB
+ RAM – 64 MB
+ Brick Screen Resolution – 178x128/Black & White
+ USB 2.0 Communication to Host PC – Up to 480 Mbit/sec
+ USB 1.1 Host communication – Up to 12 Mbit/sec
+ Micro SD card – Supports SDHC, Version 2.0,
Max 32 GB
+ Motor and Sensor Ports
+ Connectors – RJ12
+ Support Auto ID
+ Power – 6 AA batteries/
rechargeable

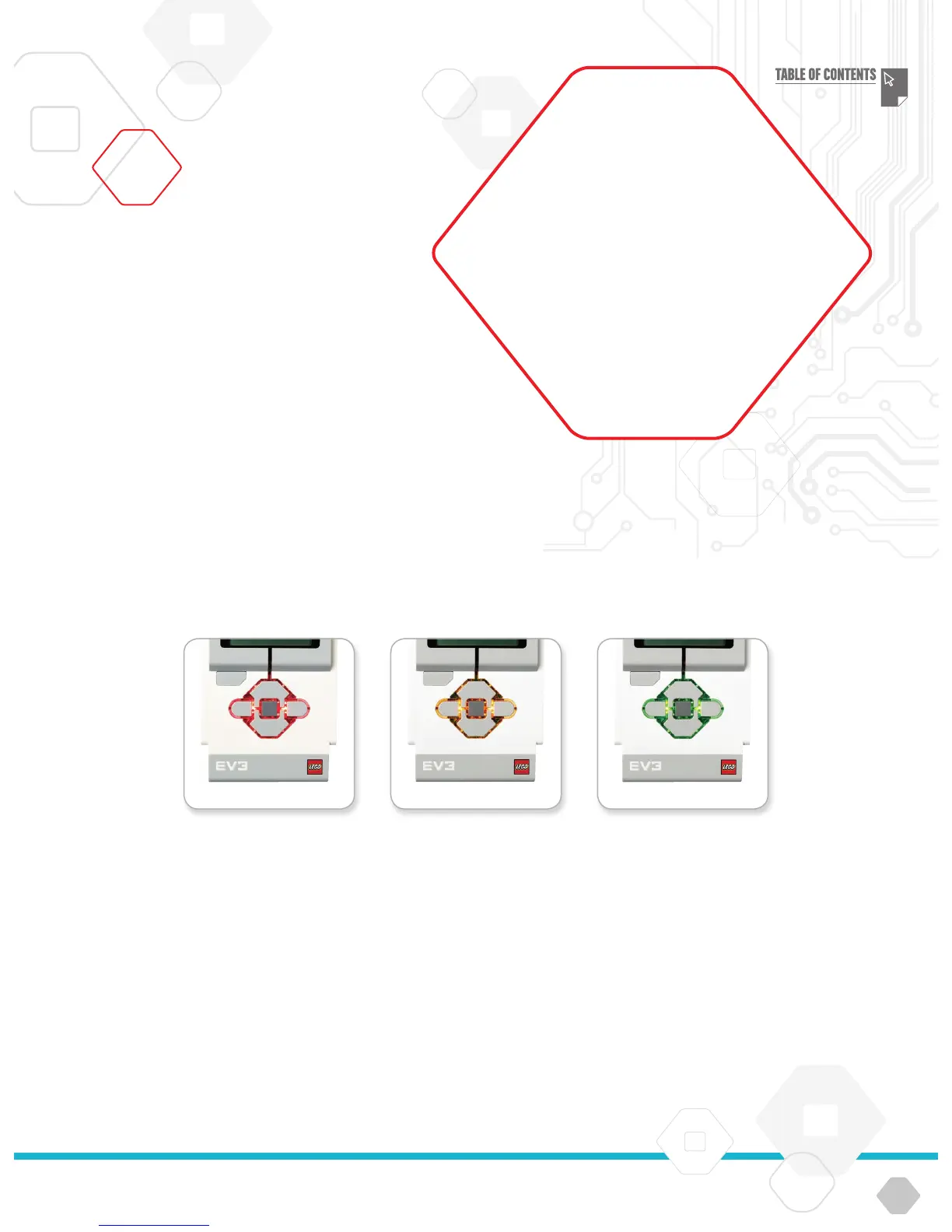

Brick Status Light – Red Brick Status Light – Orange Brick Status Light – Green
