Functions
14 M320 Ref. 10734261 / Version 03 M320 Ref. 10734261 / Version 03 15
7
Fasten the screw.
8
Turn the lever for locking the
vertical position.
9
Adjust the balancing joint to
the weight using an Allen key
(size 8).

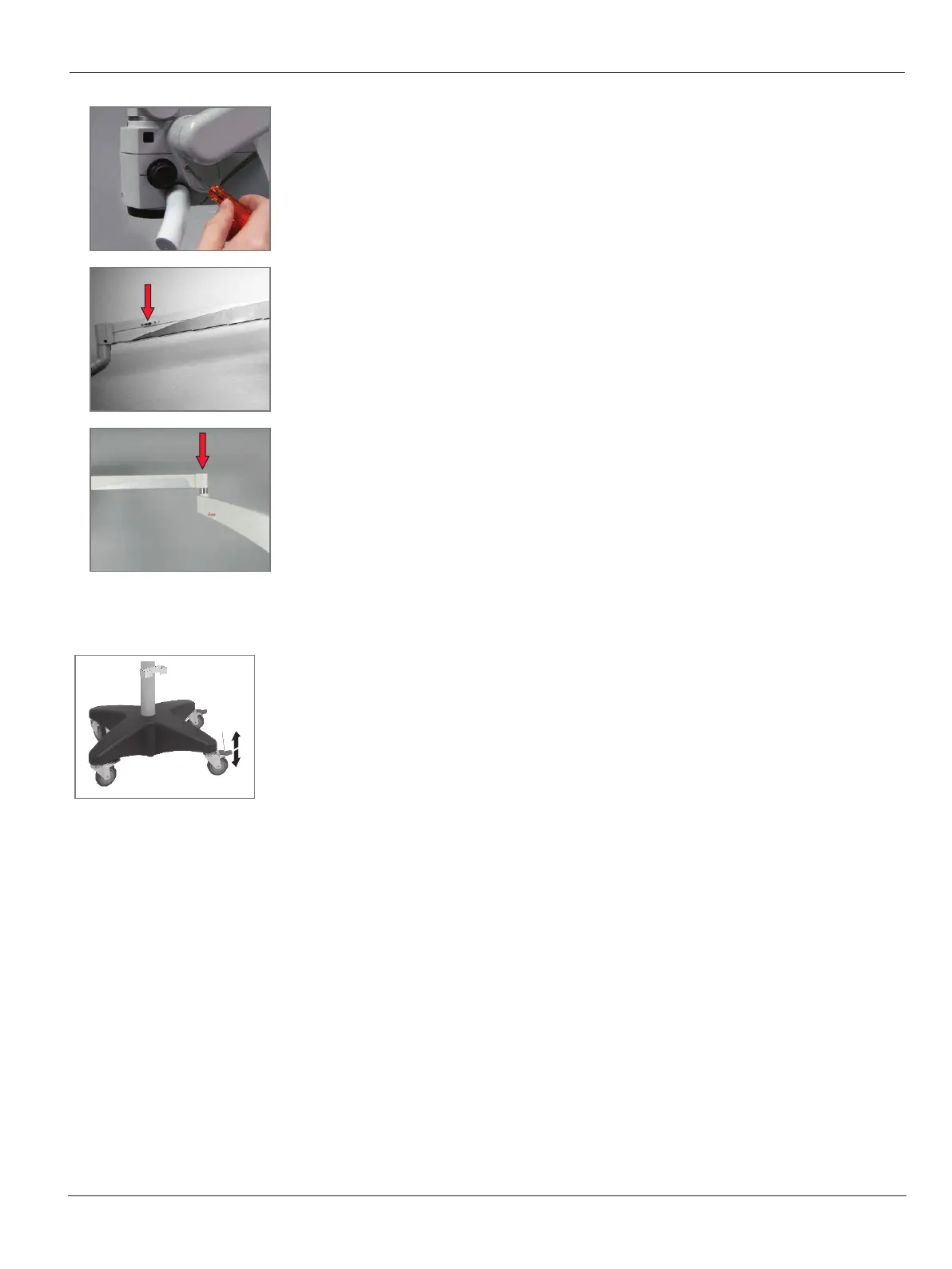

6.3 Footbrakes
1
2
3
Footbrakes are attached to each
of the four wheels on the stand.
The wheel is engaged and
released with the footbrake
engage/release lever (1).
X
Press the footbrake engage/
release lever down (3):
X
The footbrake is engaged.
X
Lift the footbrake engage/
release lever (2):
X
The footbrake is released.
